Same model may have multiple batches, images only for reference.

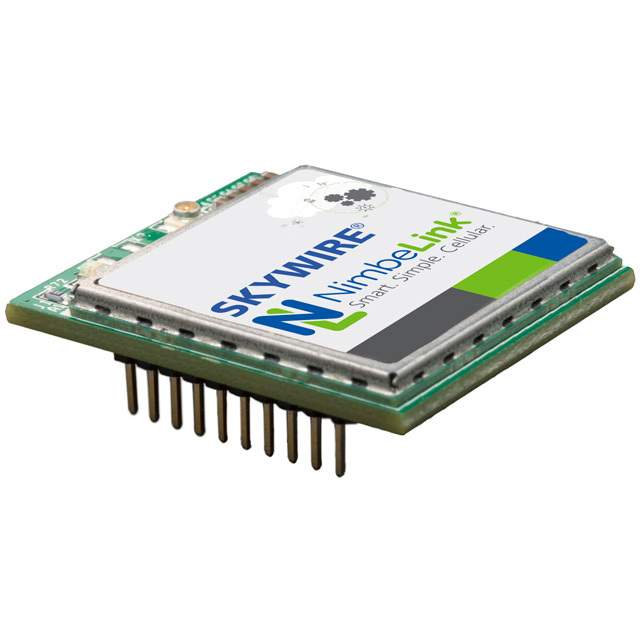

NL-SW-HSPAP Real Image
Same model may have multiple batches, images only for reference.

NL-SW-HSPAP

Part No NL-SW-HSPAP
Manufacturer NimbeLink, LLC
Catalog RF Transceiver Modules
Description EMBEDDED CELLULAR MODEM
Datasheet
NL-SW-HSPAP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features Cellular 2G/3G HSPA+ Transceiver Module 800MHz, 850MHz, 1.7GHz, 1.9GHz Antenna Not Included, U.FL Through Hole
Manufacturer NimbeLink, LLC
Series Skywire™
Package Bulk
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 20-DIP Module
MSL Level 1 (Unlimited)
ECCN 5A992C
HTSUS 8517.62.0010
Other Part Number 100016G, 1477-1008, HE910-NAD
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873489-NL-SW-HSPAP
Ultra Librarian 3D Model Ultra Librarian NL-SW-HSPAP CAD Model

Description

The NL-SW-HSPAP is a cellular 2G/3G HSPA+ transceiver module that operates within a frequency range of 800MHz to 1.9GHz.

  • Manufacturer: NimbeLink, LLC
  • Series: Skywire™
  • Package: 20-DIP module
  • Mounting: Through-hole
  • Application: RF/IF and RFID
  • Antenna: U.FL through-hole
  • Operating Temperature: -40°C to 85°C
  • Lifecycle: Not suitable for new designs
