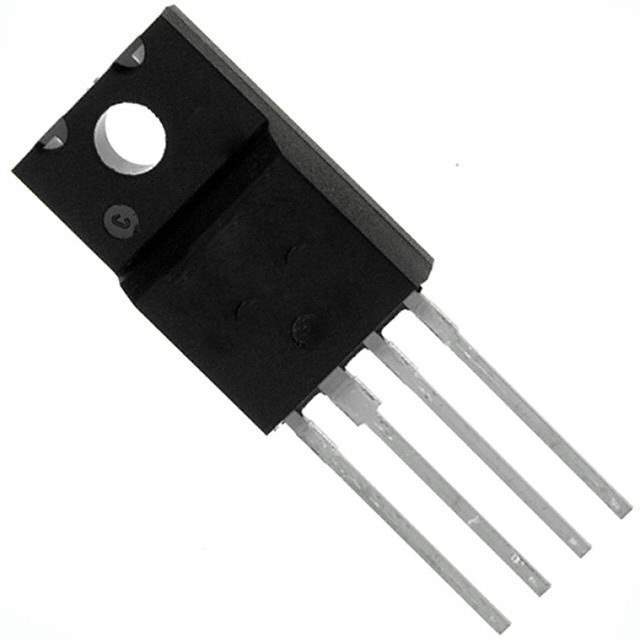

NJM2396F05 Real Image
Same model may have multiple batches, images only for reference.

NJM2396F05

Part No NJM2396F05
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 5V 1.5A TO220F-4L / Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220F-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Voltage Regulators - Linear
Manufacturer Nisshinbo Micro Devices Inc.
Packaging Tube
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 35V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.5V @ 500mA
Current - Output 1.5A
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 85°C
Mounting Through Hole
Case / Package TO-220-4 Full Pack
Supplier Device Package TO-220F-4
RoHS Status RoHS Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number NJM2396F05#,NJM2396F05INACTIVE,2129-NJM2396F05,NJM#2396F05,NJM2396F05-ND,NJM2396F05INACTIVE-ND,NJM#2396F05-ND,NJM2396F05#-ND
Standard Package 50
Win Source Part Number 1323741-NJM2396F05
Ultra Librarian 3D Model Ultra Librarian NJM2396F05 CAD Model

Description

The NJM2396F05 is a linear voltage regulator from Nisshinbo Micro Devices Inc.

  • Output Voltage: Fixed 5V
  • Maximum Current: 1.5A
  • Output Configuration: Positive
  • Input Voltage (Max): Up to 35V
  • Package: TO-220F-4
  • Operating Temperature: -40°C to 85°C
  • Protection: Overcurrent, over temperature, and over voltage
  • PSRR: 60dB @ 120Hz
  • RoHS Compliant: Yes
