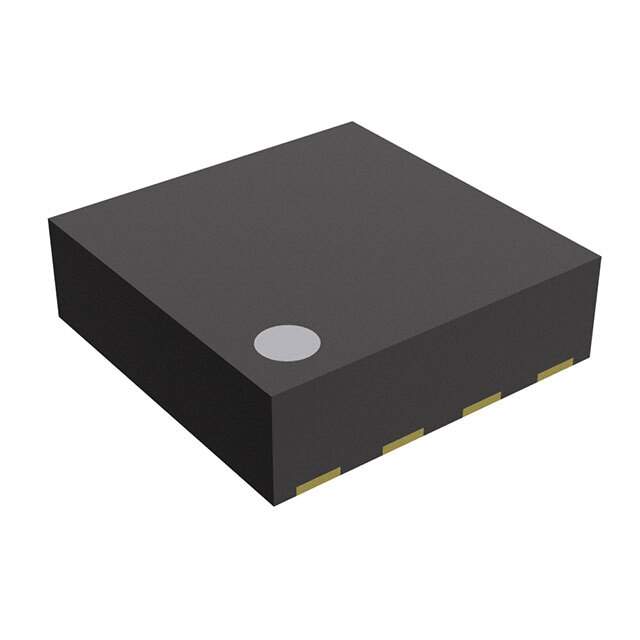

RP505K121A-TR

Name: RP505K121A-TR
Brand: Nisshinbo Micro Devices Inc.
SKU: 1249822
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RP505K121A-TR
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	1A PWM/VFM STEP-DOWN DCDC CONVER / Buck Switching Regulator IC Positive Fixed 1.2V 1 Output 1A 8-UFDFN Exposed Pad
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Series	RP505K
Package	Tape & Reel (TR)
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Current - Output	1A
Frequency - Switching	2.25MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	8-UFDFN Exposed Pad
Supplier Device Package	DFN(PLP)2020-8
Base Product Number	RP505
Standard Package	5,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1249822-RP505K121A-TR
Ultra Librarian 3D Model	Ultra Librarian RP505K121A-TR CAD Model

Alternative Products

Description

The RP505K121A-TR is a fixed output step-down DC-DC switching regulator, belonging to the RP505K series of integrated circuits.

Rectifier: Synchronous
Maximum Output Current: 1A
Output Configuration: Positive
Voltage Input Range: 2.3V and 5.5V
Voltage Output: Fixed @ 1.2V
Topology: Buck
Frequency: 2.25MHz
Package: 8-UFDFN Exposed Pad
Supplier Device Package: DFN(PLP)2020-8
Operating Temperature: -40°C to 85°C (TA)
MSL Level: 1 (Unlimited)
HTSUS: 8542.39.0001
Manufacturer: Nisshinbo Micro Devices Inc.
