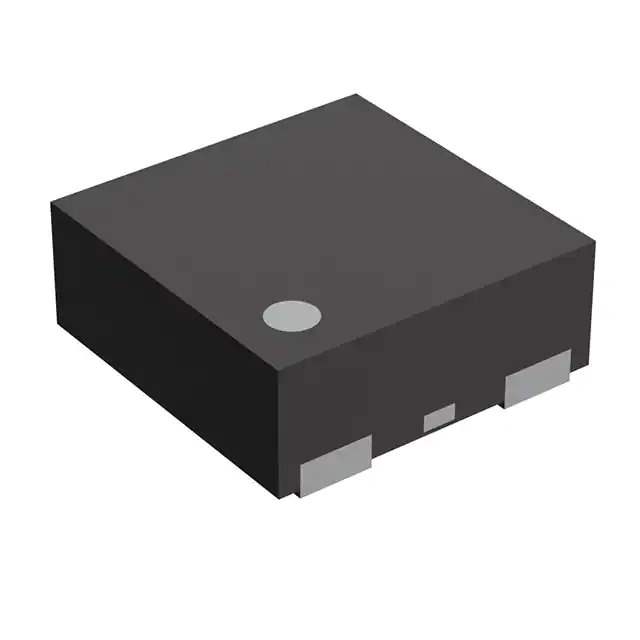

RP109L261D-TR Real Image
Same model may have multiple batches, images only for reference.

RP109L261D-TR

Part No RP109L261D-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 2.6V 150MA DFN1010-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP109x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 2.6V
Voltage Dropout (Max) 0.35V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 70 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Supplier Device Package DFN1010-4
Base Product Number RP109
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 715992-RP109L261D-TR
Ultra Librarian 3D Model Ultra Librarian RP109L261D-TR CAD Model

Description

The RP109L261D-TR is a linear voltage regulator integrated circuit (IC) from the RP109x series manufactured by Nisshinbo Micro Devices Inc.

  • Category: power management
  • Design: designed for use in voltage regulation applications
  • Voltage Input Range: operates on a voltage input range of 5.25V
  • Output Voltage: provides a fixed output voltage of 2.6V
  • Current Output: features a current output of 150mA
  • Quiescent Current: has a quiescent current of 70μA
  • Temperature Range: -40°C to 85°C
  • Mounting: mounted using surface mount technology
  • Package: comes in a 4-XDFN exposed pad package
  • Protection Features: offers protection features such as overcurrent protection
  • PSRR: has a high PSRR of 75dB @ 1kHz
  • Status: currently active
