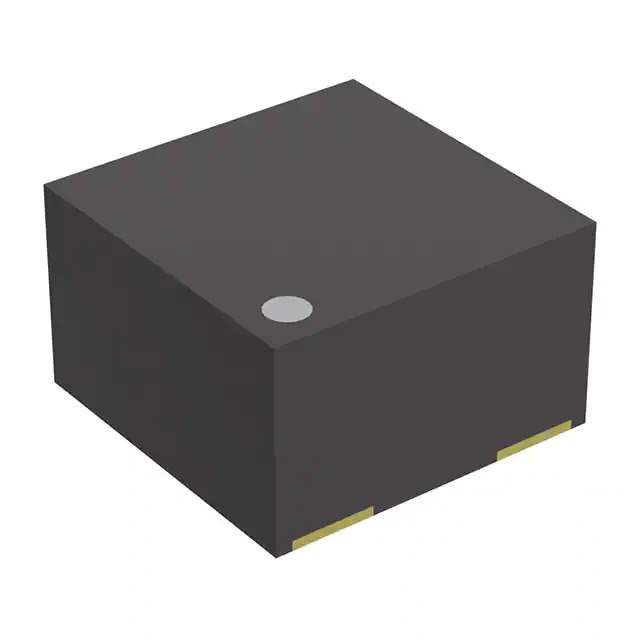

RP109L331D-TR Real Image
Same model may have multiple batches, images only for reference.

RP109L331D-TR

Part No RP109L331D-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 3.3V 150MA DFN1010-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP109x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.32V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 70 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 4-UDFN Exposed Pad
Supplier Device Package DFN(PL)1010-4
Base Product Number RP109
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298214-RP109L331D-TR
Ultra Librarian 3D Model Ultra Librarian RP109L331D-TR CAD Model

Description

The RP109x series is a family of linear voltage regulators designed for power management applications.

  • Part Number: RP109L331D-TR
  • Output Voltage: 3.3V (fixed)
  • Maximum Output Current: 150mA
  • Dropout Voltage: 0.32V @ 150mA
  • Input Voltage: 0V to 5.25V
  • Mounting: Surface mount
  • Package: 4-UDFN exposed pad
  • Protection: Over current
  • Quiescent Current: 70μA
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Status: Active
  • Series: RP109x
