Same model may have multiple batches, images only for reference.

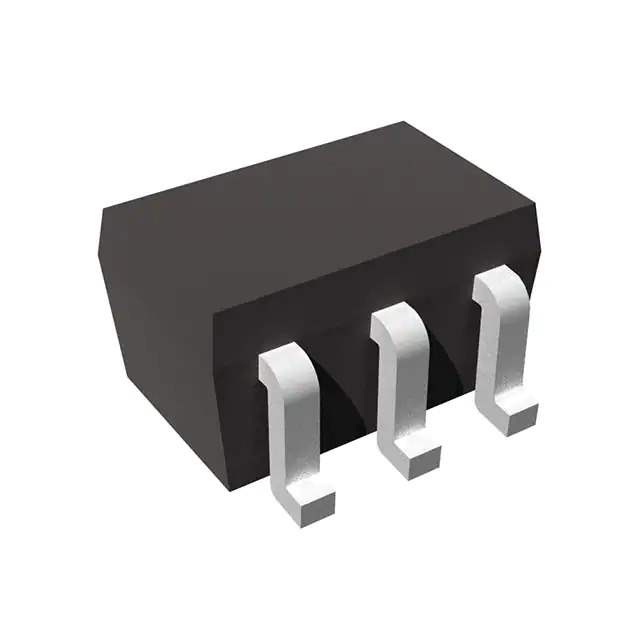

RP109Q182D-TR-FE Real Image
Same model may have multiple batches, images only for reference.

RP109Q182D-TR-FE

Part No RP109Q182D-TR-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1.8V 150MA SC88A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP109x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.8V
Voltage Dropout (Max) 0.48V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 70 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package SC-88A
Base Product Number RP109
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 813324-RP109Q182D-TR-FE
Ultra Librarian 3D Model Ultra Librarian RP109Q182D-TR-FE CAD Model

Description

The RP109x series is a voltage regulator IC with a fixed output voltage of 1.8V from Nisshinbo Micro Devices Inc.

  • Output Current: 150mA
  • Input Voltage: Up to 5.25V
  • Package: 5-TSSOP, SC-70-5, SOT-353
  • Mounting: Surface Mount
  • Protection: Over Current
  • Quiescent Current: 70μA
  • Operating Temperature Range: -40°C to 85°C
  • PSRR: 75dB @ 1kHz
  • Status: Active
