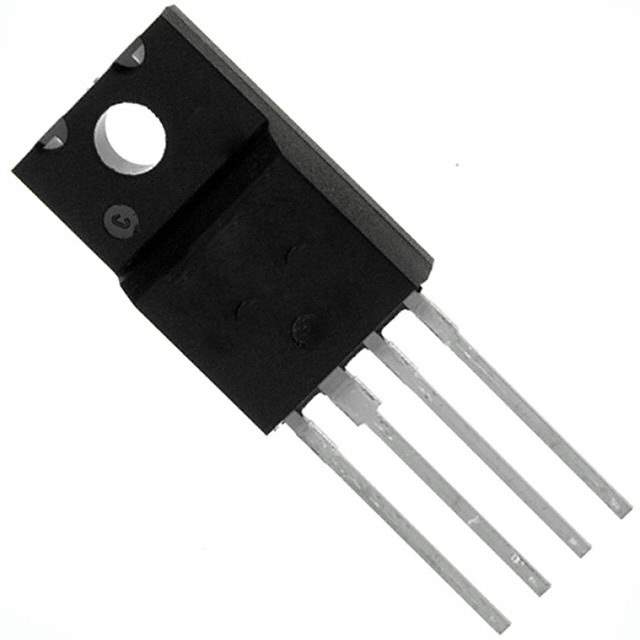

NJM2396F63 Real Image
Same model may have multiple batches, images only for reference.

NJM2396F63

Part No NJM2396F63
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 6.3V 1.5A TO220F-4
Datasheet
NJM2396F63 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 6.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1.5A
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 6.3V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting Through Hole
Case / Package TO-220F-4L
Win Source Part Number 209180-NJM2396F63
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian NJM2396F63 CAD Model

Description

The NJM2396F63 is an integrated circuit manufactured by NJR Corporation/NJRC. It is a positive fixed regulator with a voltage dropout of 0.2V @ 500mA.

  • Regulator Type: Positive Fixed
  • Dropout Voltage: 0.2V @ 500mA
  • Number of Regulators: Single
  • Output Type: Fixed
  • Output Voltage: 6.3V
  • Output Current: 1.5A
  • Suitable for: Integrated Circuits
  • Supply and Demand Status: Limited
  • Package: TO-220F-4L
  • Operating Temperature: -40°C to 85°C
  • Quantity per Package: 50
