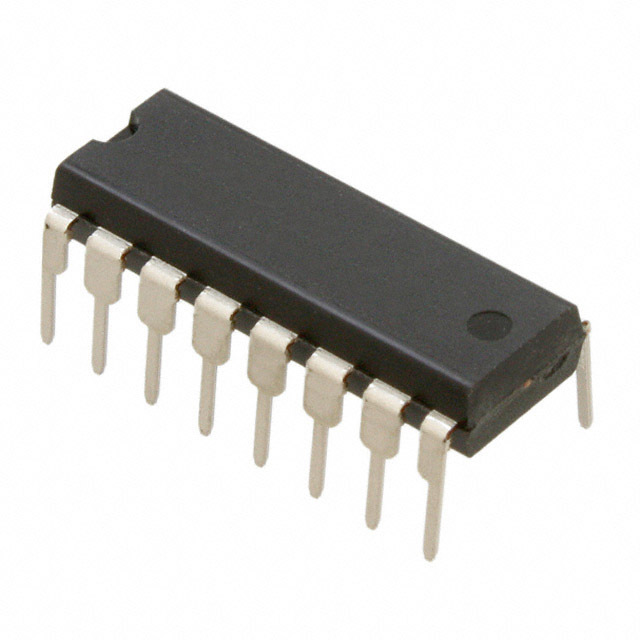

NJM3717D2 NJR Corporation/NJRC NJM3717D2 Real Image NJM3717D2 real image
Same model may have multiple batches, images only for reference.
NJM3717D2 NJR Corporation/NJRC NJM3717D2 Real Image NJM3717D2 real image
NJM3717D2 NJR Corporation/NJRC NJM3717D2 Real Image NJM3717D2 real image
Same model may have multiple batches, images only for reference.

NJM3717D2

Part No NJM3717D2
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 16DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Tube/Rail
Status Active
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Step Resolution 1, 1/2
Applications General Purpose
Output Current 1A
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -20°C to 125°C (TJ)
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 060289-NJM3717D2
Family Name NJM3717
Introduction Date
ECCN EAR99
Estimated EOL Date 2019
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian NJM3717D2 CAD Model

Description

The NJR Corporation/NJRC 060289-NJM3717D2 is a high popularity integrated circuit that belongs to the NJM3717 family. It is a driver - fully integrated, control and power stage component with a bipolar technology and a 1A output current.

  • Package Type: 16-DIP
  • Mounting Type: through hole
  • Win Source Part Number: 060289-NJM3717D2
