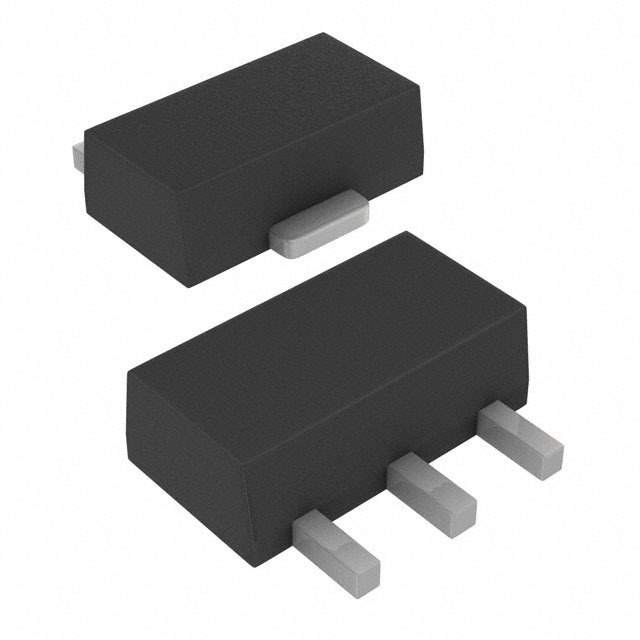

NJM78L20UA-TE1 Real Image
Same model may have multiple batches, images only for reference.

NJM78L20UA-TE1

Part No NJM78L20UA-TE1
Manufacturer NJR Corporation/NJRC
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 20V 0.1A SOT89
Datasheet
NJM78L20UA-TE1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NJR Corporation/NJRC
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 20V
Output Current 100mA
Operating Supply Current 7mA
PSRR 58dB (120Hz)
Control Protection Features Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 20V
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 209213-NJM78L20UA-TE1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NJM78L20UA-TE1 CAD Model

Description

The NJR Corporation/NJRC Positive Fixed Regulator is a high-quality device that is designed to regulate voltage in a circuit.

  • Output Type: Fixed
  • Maximum Output Voltage: 20V
  • Output Current: 100mA
  • Status: Active
  • Operating Temperature: -40°C to 85°C
  • Package: SMD (SMT)
  • Case: SOT-89
  • Maximum Input Voltage: 40V
  • Nominal Output Voltage: 20V
  • PSRR: 58dB (120Hz)
  • Protection: Over-temperature and Short Circuits
