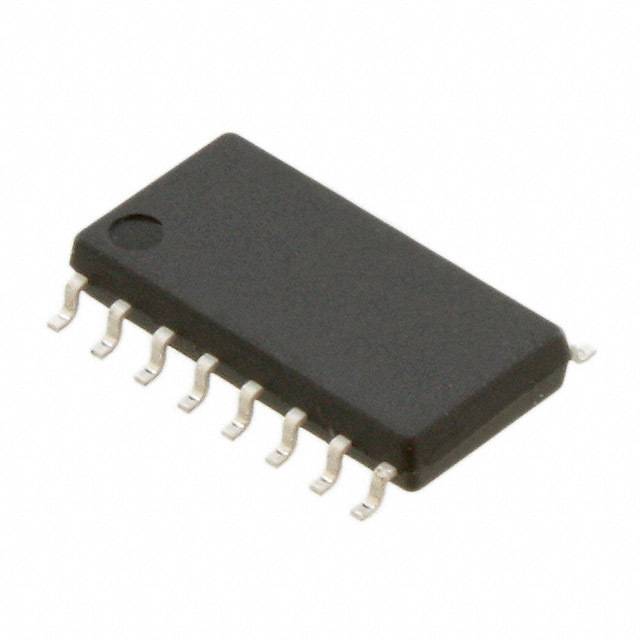

NJU7301M-TE1-#ZZZB NJR Corporation/NJRC
Same model may have multiple batches, images only for reference.

NJU7301M-TE1-#ZZZB

Part No NJU7301M-TE1-#ZZZB
Manufacturer NJR Corporation/NJRC
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH QUAD SPST 16DMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer NJR-Corporation-NJRC
Packaging Tube
Switch Circuit SPST - NO
Number of Circuits 4
On-State Resistance (Max) 200 Ohm
Voltage - Supply, Dual (V±) ±15V
Switch Time (Ton, Toff) (Max) 600ns, 450ns
Charge Injection 20pC
Channel Capacitance (CS(off), CD(off)) 5pF, 5pF
Current - Leakage (IS(off)) (Max) 100nA
Crosstalk -90dB @ 100kHz
Operating Temperature Range 0°C ~ 70°C (TA)
Package 16-SOIC (0.209", 5.30mm Width)
Manufacturer Device Package 16-DMP
Win Source Part Number 004045-NJU7301M-TE1-#ZZZB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NJU7301M-TE1-#ZZZB CAD Model

Description

The NJU7301M-TE1-#ZZZB integrated circuit is a four-channel analog switch designed for use in various applications such as signal switching, audio and video signal routing, and multiplexing.

  • Supply Voltage: +/- 15V
  • On-State Resistance: 200 Ohm
  • Charge Injection: 20pC
  • Package: 16-SOIC
  • Operating Temperature Range: 0°C to 70°C
  • Crosstalk: -90dB @ 100kHz
  • Current Leakage: 100nA
  • Ideal for: This integrated circuit is ideal for use in audio and video signal processing applications.
