Same model may have multiple batches, images only for reference.

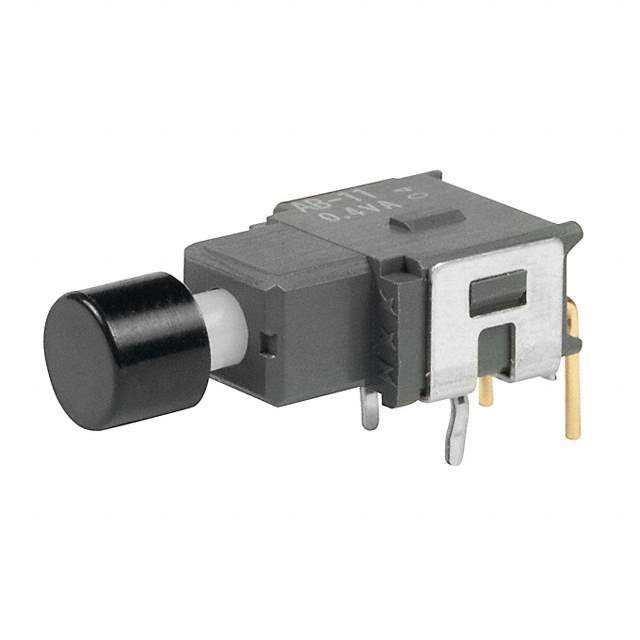

AB11AH-FA-RO Real Image
Same model may have multiple batches, images only for reference.

AB11AH-FA-RO

Part No AB11AH-FA-RO
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description Switch Push Button OFF (ON) SPST Round Plunger 0.1A 28VAC 28VDC 0.4W Momentary Contact 50000Cycle PC Pins Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Polyacetal
Contact Material Bronze
Contact Plating Gold
Depth 20.48 mm
Housing Material Polyamide
Lead Free Lead Free
Length 9.8 mm
Max Current Rating 100 mA
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 28 V
Max Voltage Rating (DC) 28 V
Min Operating Temperature -30 °C
Orientation Right Angle
Packaging Box
Power Rating 400 mW
RoHS Compliant
Termination Solder
Throw Configuration SPST
Voltage Rating (AC) 28 V
Voltage Rating (DC) 28 V
Win Source Part Number 1146839-AB11AH-FA-RO
Categories Pushbutton Switches
Manufacturer NKK Switches
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AB11AH-FA-RO CAD Model

Description

The AB11AH-FA-RO pushbutton switch has a right-angle orientation from NKK Switches.

  • Orientation: Right-Angle
  • Length: 9.8 mm
  • Housing Material: Polyamide
  • Actuator Material: Polyacetal
  • Power Rating: 400 mW
  • Maximum Current Rating: 100 mA
  • Contact Material: Bronze
  • Contact Plating: Gold
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Voltage Rating: 28 V (AC/DC)
  • Throw Configuration: SPST
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -30 °C
  • Packaging: Box
