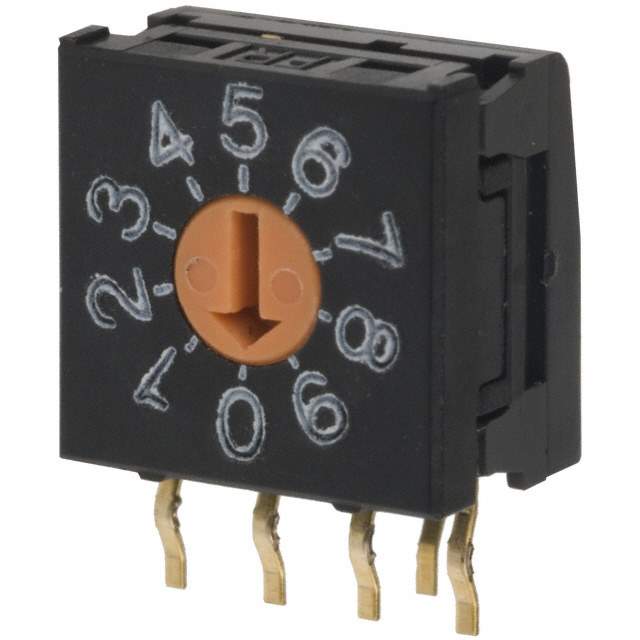

FR01FR10H-S Real Image
Same model may have multiple batches, images only for reference.

FR01FR10H-S

Part No FR01FR10H-S
Manufacturer NKK Switches
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 100MA 5V / Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr NKK Switches
Series FR01
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.394" (10.00mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -25°C ~ 85°C
Body Material Polyamide (PA), Nylon, Glass Filled
Length 0.394" (10.00mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Base Product Number FR01FR10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 360-2197,FR01FR10HS
Standard Package 50
Win Source Part Number 1163381-FR01FR10H-S
Ultra Librarian 3D Model Ultra Librarian FR01FR10H-S CAD Model

Description

The FR01 DIP Switch from NKK Switches is a reliable switch that is perfect for various applications.

  • Positions: 10
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: PC Pin
  • Packaging: Tube
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 5VDC
  • Height Above Board: 0.394" (10.00mm)
  • Length: 0.394" (10.00mm)
  • Body Material: Polyamide (PA), Nylon, Glass Filled
  • Circuit: BCD
  • Actuator Type: Rotary for tool
  • Electrical Life: 10,000 steps
  • Mechanical Life: 10,000 steps
  • Actuator Level: Flush, Recessed
  • Mounting Type: Through Hole, Right Angle
