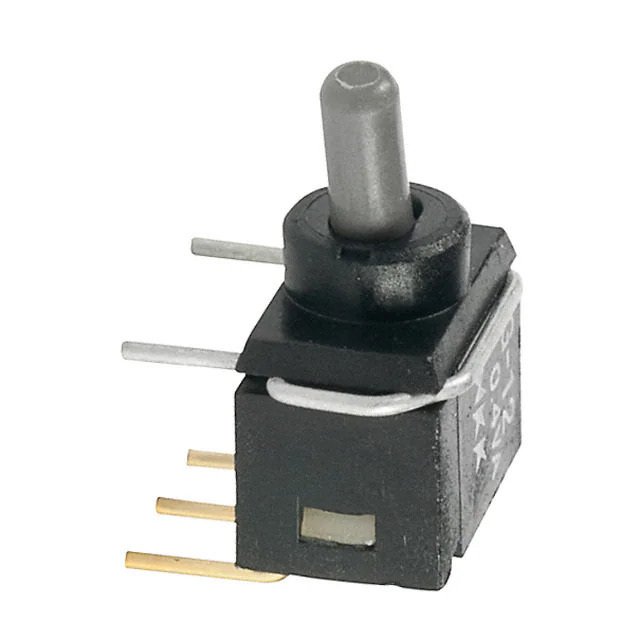

G12AH NKK Switches
Same model may have multiple batches, images only for reference.

G12AH

Part No G12AH
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series G
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 3.80mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions -
Bushing Thread Unthreaded
Ingress Protection -
Features Process Sealed
Temperature Range - Operating -25°C ~ 85°C
Actuator Material Polyamide (PA), Nylon, Glass Filled
Electrical Life 100,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375998-G12AH
Ultra Librarian 3D Model Ultra Librarian G12AH CAD Model

Description

The 1375998-G12AH is a G series toggle switch from NKK Switches.

  • Circuit Configuration: SPDT
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V AC/DC
  • Mounting Type: Through-Hole, Right Angle
  • Actuator Type: Standard Round
  • Illumination: Non-Illuminated
  • Actuator Length: 3.80mm
  • Electrical Life: 100,000 cycles
