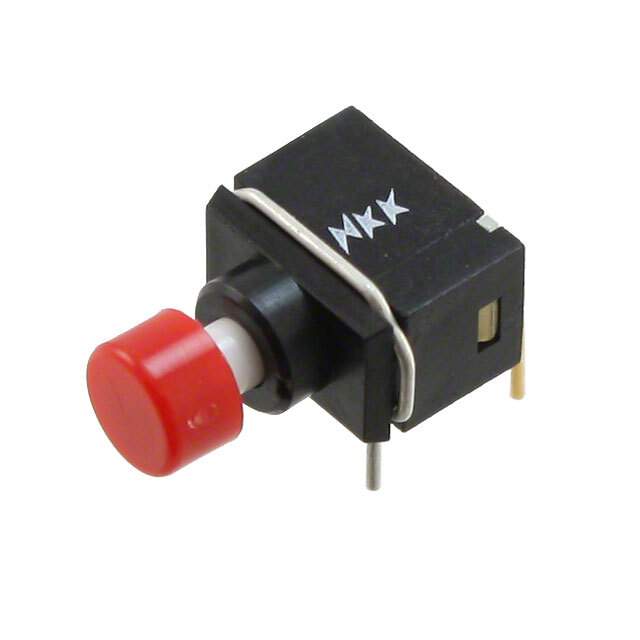

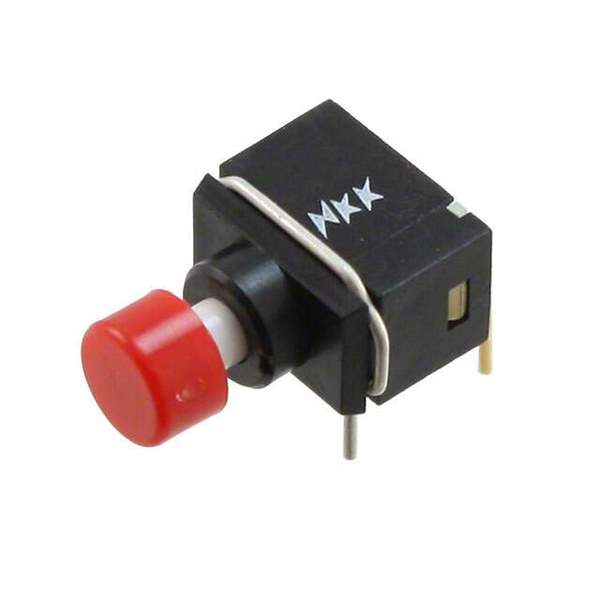

GB15AH-XC Real Image
Same model may have multiple batches, images only for reference.

GB15AH-XC

Part No GB15AH-XC
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V  /  Pushbutton Switch SPDT Standard Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr NKK Switches
Series GB
Package Tray
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Red
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number GB15AH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names GB15AH-XC-ND,GB15AH-XC-RO-ND,GB15AHXC,GB15AH-XC-RO,360-2628
Standard Package 1
Win Source Part Number 1205854-GB15AH-XC
Ultra Librarian 3D Model Ultra Librarian GB15AH-XC CAD Model

Description

The GB series pushbutton switch from NKK Switches is a SPDT circuit type switch with a 50,000 cycle mechanical life.

  • Switch Function: On-Mom
  • Actuator Type: round button
  • Actuator/Cap Color: red
  • Actuator Marking: None
  • Termination Style: PC pin
  • Mounting Type: through hole, right angle
  • Voltage Rating (AC/DC): 28V
  • Current Rating: 0.4VA
  • Operating Temperature Range: -30°C to 85°C
  • Switch Type: standard
  • Packaging: tray
