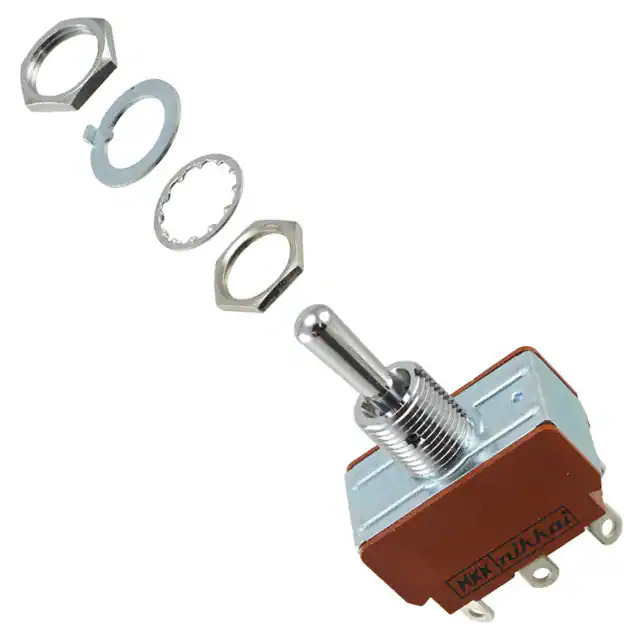

S333 NKK Switches
Same model may have multiple batches, images only for reference.

S333

Part No S333
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 25A 125V / Toggle Switch DPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 25A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection -
Features -
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376008-S333
Ultra Librarian 3D Model Ultra Librarian S333 CAD Model

Description

The S333 is a toggle switch from NKK Switches' S300 series.

  • Series: S300
  • Circuit: DPDT
  • Switch Function: On-Off-On
  • Current Rating: 25A (AC/DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Temperature Range: -10°C to 70°C
  • Mounting Type: Panel Mount
  • Termination Style: Solder Lug
  • Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
