Same model may have multiple batches, images only for reference.

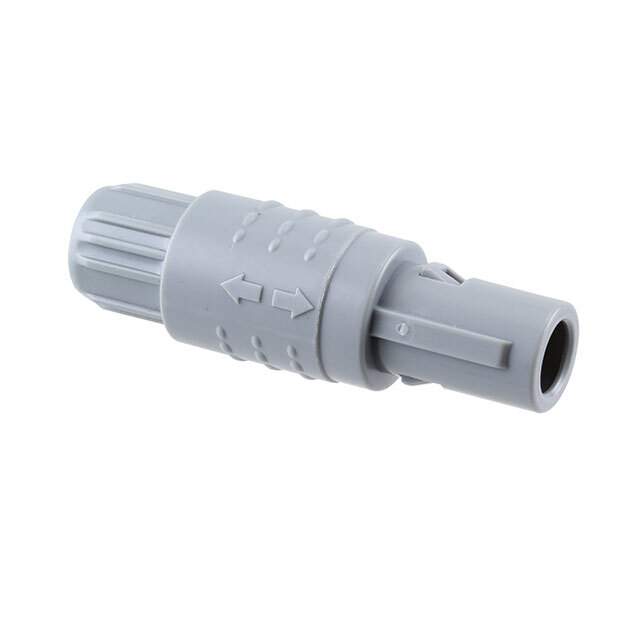

8P1P00817NNL621 Real Image
Same model may have multiple batches, images only for reference.

8P1P00817NNL621

Part No 8P1P00817NNL621
Manufacturer NorComp Inc.
Catalog Circular Connectors
Description CONN PLUG MALE 8POS GOLD SOLDER
Datasheet
8P1P00817NNL621 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer NorComp Inc.
Series QUIK-LOQ 8P1P
Packaging Tray
Connector Type Plug, Male Pins
Number of Positions 8
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Ingress Protection IP50 - Dust Protected
Shell Material, Finish Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Contact Finish Gold
Features Backshell
Voltage Rating DC 400V
Current Rating 5A
Contact Finish Thickness 7μin (0.18μm)
Operating Temperature Range -20°C ~ 120°C
Win Source Part Number 771027-8P1P00817NNL621
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 8P1P00817NNL621 CAD Model

Description

The NorComp Inc. QUIK-LOQ 8P1P is an 8-position plug male pin connector.

  • Termination: Solder Cup
  • Fastening Type: Push-Pull
  • Current Rating: 5A
  • Voltage Rating DC: 400V
  • Ingress Protection: IP50 (Dust Protected)
  • Contact Finish: Gold
  • Contact Finish Thickness: 7μin (0.18μm)
  • Temperature Range: -20°C to 120°C
  • Backshell: Yes
  • Applications: Connectors and Interconnects
  • Popularity: Medium
  • Supply and Demand Status: Limited
