Same model may have multiple batches, images only for reference.

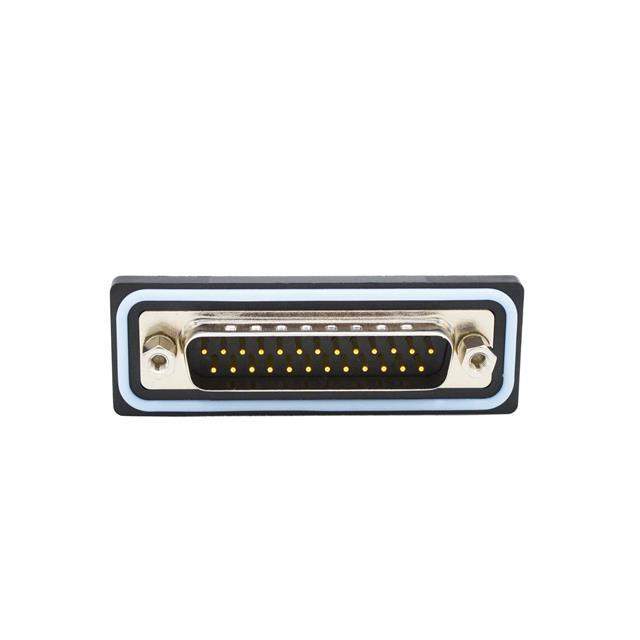

SDF-V25-113L051 Real Image
Same model may have multiple batches, images only for reference.

SDF-V25-113L051

Part No SDF-V25-113L051
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25P PNL MNT SLDR / 25 Position D-Sub Plug, Male Pins Connector
Datasheet
SDF-V25-113L051 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series NANOOK
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock, Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Temperature Range - Operating -25°C ~ 85°C
Base Product Number SDF-V25
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340708-SDF-V25-113L051
Ultra Librarian 3D Model Ultra Librarian SDF-V25-113L051 CAD Model

Description

The SDF-V25-113L051 electronic component is a NANOOK series D-sub connector assembly manufactured by NorComp Inc.

  • Connector Type: Plug, Male Pins
  • Number of Positions: 25
  • Color: Black
  • Features: Grounding Indent, Board Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Ingress Protection: IP67
  • Flammability Rating: UL94 V-0
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Material: Steel
  • Shell Finish: Nickel Plated
  • Shell Size/Connector Layout: 3 (DB, B)
  • Mounting Type: Panel Mount, Through Hole
  • Operating Temperature: -25°C to 85°C
  • Current Rating: 5A
  • REACH: Unaffected
