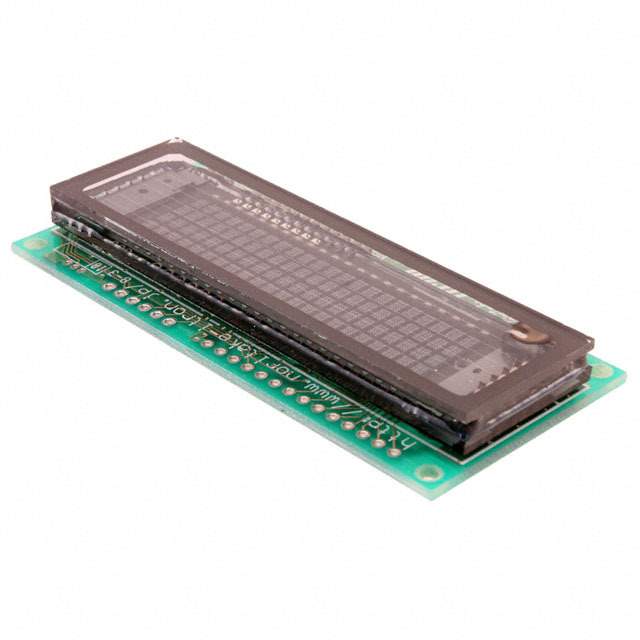

CU22042-Y100 Real Image
Same model may have multiple batches, images only for reference.

CU22042-Y100

Part No CU22042-Y100
Manufacturer Noritake Company Inc.
Catalog Display Modules - Vacuum Fluorescent (VFD)
Description VFD CHARACTER 22X4 2.35MM / Vacuum Fluorescent Display (VFD) 22 x 4 Character 5V Parallel/Serial 80.00mm x 36.00mm x 8.50mm
Datasheet
CU22042-Y100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Vacuum Fluorescent (VFD)
Mfr Noritake Company Inc.
Series CU-Y
Package Tray
Outline L x W x H 80.00mm x 36.00mm x 8.50mm
Viewing Area 52.50mm L x 11.50mm W
Display Format 22 x 4
Display Type Character
Format 5 x 8 Dots
Voltage - Supply 5V
Character Size 2.35mm H x 1.66mm W
Interface Parallel/Serial
Temperature Range - Operating -40°C ~ 85°C
Base Product Number CU22042
Standard Package 24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9005
Win Source Part Number 1336800-CU22042-Y100
Ultra Librarian 3D Model Ultra Librarian CU22042-Y100 CAD Model

Description

The Noritake Company Inc. Vacuum Fluorescent (VFD) Display is a high-quality display designed for use in a variety of applications. Noritake Company Inc.

  • Display Type: Vacuum Fluorescent (VFD)
  • Series: CU-Y
  • Display Format: 22 x 4
  • Character Size: 2.35mm H x 1.66mm W
  • Interface: Parallel/Serial
  • Dot Format: 5 x 8 Dots
  • Size: 80.00mm x 36.00mm x 8.50mm
  • Viewing Area: 52.50mm L x 11.50mm W
  • Packaging: Tray
  • Standard Package: 24
  • Voltage Supply: 5V
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
  • HTSUS: 8531.80.9005
