Product Overview: 74ALVCHT16835DGV:1 from NXP

The 74ALVCHT16835DGV:1 is a high-performance, 18-bit universal bus driver from NXP Semiconductors, designed with a focus on facilitating low-voltage operation while providing the capability to interface with a 3.3V signal environment. This product is a part of the Advanced Low-Voltage CMOS High-Tolerance (ALVCHT) family, which is renowned for its robust tolerance to voltage variations and its ability to maintain signal integrity in demanding applications.

Featuring 18-bit bi-directional bus interface, the 74ALVCHT16835DGV:1 is suitable for multiplexed transmission of data directly from the bus or from the system's input/output ports. This versatility makes it an ideal choice for a wide range of applications, including computing, data storage, and high-speed communication systems.

The device operates at a voltage range of 2.3V to 3.6V, which allows for seamless integration in systems that require lower power consumption without sacrificing performance. Additionally, the 74ALVCHT16835DGV:1 supports bus hold functionality on the data inputs, eliminating the need for external pull-up or pull-down resistors and thus reducing system cost and complexity.

One of the key features of this product is its ability to drive heavily loaded buses with low ground bounce noise, thanks to its balanced output drive and Gunning Transceiver Logic (GTL) compatible inputs and outputs. The outputs are also equipped with power-off disable capability, ensuring that they remain in the high-impedance state during power down, which helps prevent any damaging backflow current.

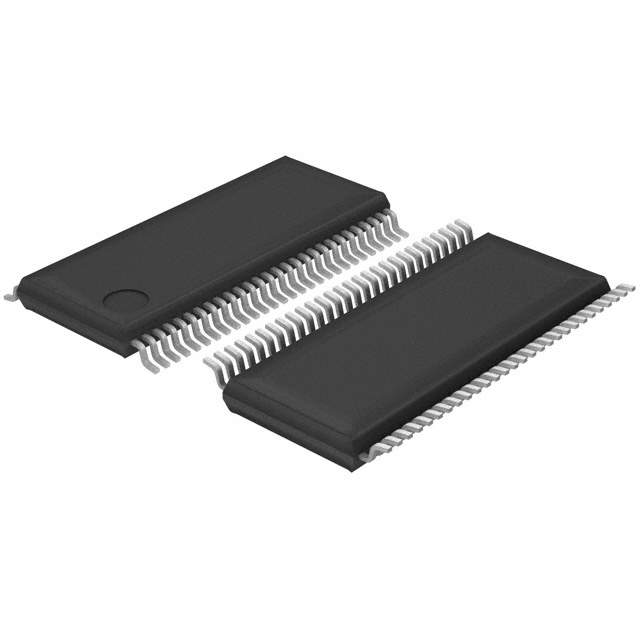

Enclosed in a slim and compact 56-pin TSSOP (Thin Shrink Small Outline Package) package, the 74ALVCHT16835DGV:1 is designed for space-constrained applications, providing a high-density solution without compromising on functionality or performance. The device also features a bus-hold data inputs feature, which provides a robust interface in a multi-master environment.

With its low-voltage operation, high-speed data transfer capabilities, and integration-friendly features, the 74ALVCHT16835DGV:1 from NXP is a top-tier solution for designers seeking to enhance their system's performance while reducing power consumption and maintaining signal integrity in a compact footprint.
