Product Overview: 74CBTLV3384DK,118 by NXP Semiconductors

The 74CBTLV3384DK,118 is a high-performance, low-voltage 10-bit bus switch designed by NXP Semiconductors, a leader in providing innovative and reliable semiconductor solutions. This bus switch is an essential component for modern electronic systems requiring efficient and fast switching capabilities. The device is particularly suitable for applications where low on-resistance and low propagation delay are critical for system performance.

Key Features

• Low-Voltage Operation: Designed to operate at 2.3V to 3.6V, making it ideal for low-voltage applications that require power efficiency.
• High-Speed Switching: Provides a quick switch response time, ensuring minimal signal delay for high-speed data transmission.
• Low On-Resistance: Features a typical on-resistance of only 5 ohms, allowing signals to pass with minimal attenuation and preserving signal integrity.
• 10-Bit Bus Interface: A single chip offers a 10-bit wide bus interface, facilitating the connection of multiple data lines through a single device.
• 5V Tolerant I/O: Inputs and outputs are tolerant to 5V, even when the device is powered down, providing greater compatibility with other logic levels within a system.

Applications

With its robust feature set, the 74CBTLV3384DK,118 is well-suited for a variety of applications, including:

• Server and Networking Equipment
• Telecommunication Systems
• Data Centers
• Signal Routing
• Memory Interfacing

Product Specifications

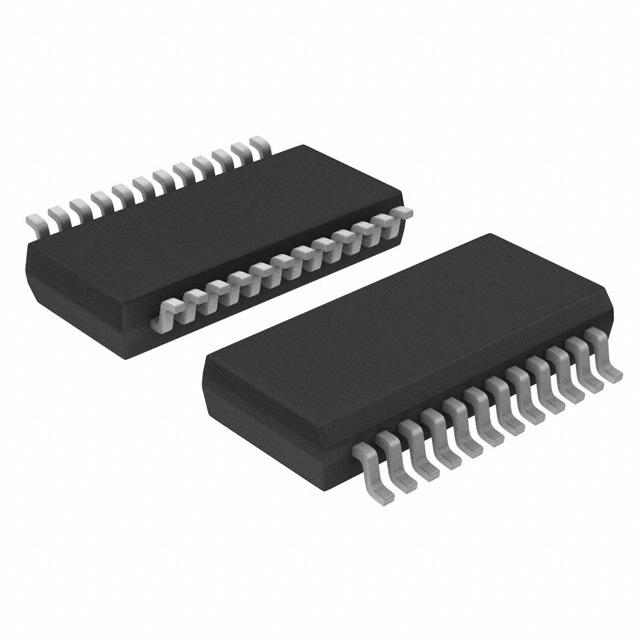

The 74CBTLV3384DK,118 is packaged in a compact and surface-mountable SSOP48 form factor, which is conducive to space-constrained applications. It also features a wide operating temperature range from -40°C to +85°C, ensuring reliability and performance under various environmental conditions.

In conclusion, the 74CBTLV3384DK,118 from NXP Semiconductors is a versatile and efficient solution for systems requiring high-speed and low-voltage bus switching. Its combination of speed, low power consumption, and robustness make it an excellent choice for designers looking to optimize their data transmission and signal routing capabilities in a variety of electronic applications.
