Product Overview: 74HC154N,652 - NXP Semiconductors

The 74HC154N,652 is a high-performance, high-speed Si-gate CMOS device manufactured by NXP Semiconductors. This integrated circuit is part of the 74HC series, which is well-known for its robustness and compatibility with TTL (Transistor-Transistor Logic). The 74HC154N,652 is a 4-to-16 line decoder/demultiplexer that offers a compact and efficient solution for expanding the output lines in digital control systems.

Key Features

• Logic Type: 4-to-16 line decoder/demultiplexer
• Supply Voltage Range: 2.0V to 6.0V, making it suitable for operation with a variety of logic levels and providing a good margin for power supply variations.
• High Noise Immunity: The 74HC154N,652 features a high noise immunity characteristic of CMOS devices, ensuring stable operation even in electrically noisy environments.
• Low Power Consumption: The low power consumption of this IC makes it ideal for battery-operated devices and applications where power efficiency is crucial.
• Output Drive Capability: Capable of driving up to 15 LSTTL loads, providing ample current for most applications.

Applications

The 74HC154N,652 is versatile and can be used in a wide range of applications. It is particularly useful in digital systems where there is a need to decode binary information or demultiplex signals. Common applications include:

• Memory address decoding
• Data routing and signal distribution
• Control logic for multiplexed displays
• Microprocessor interface systems

Package and Quality

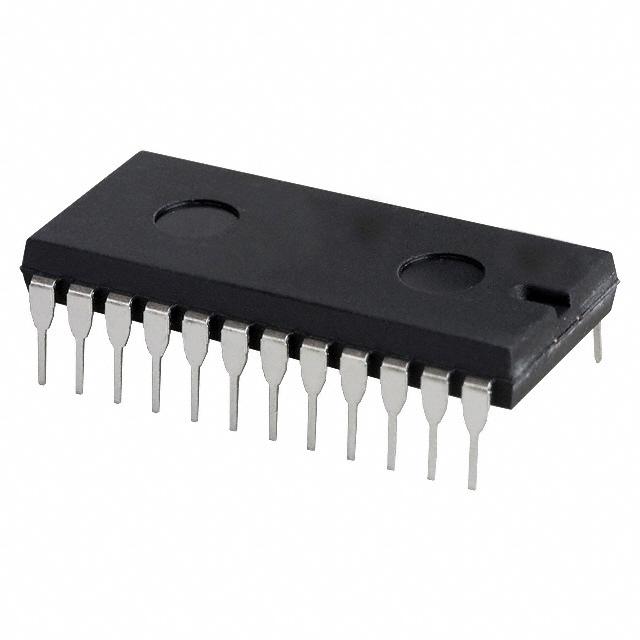

The device is packaged in a standard 24-pin DIP (Dual In-line Package), which is easy to handle and compatible with both through-hole and socket-based PCB (Printed Circuit Board) designs. The 74HC154N,652 is RoHS compliant, ensuring adherence to the latest environmental standards and regulations. NXP's commitment to quality ensures that this decoder/demultiplexer meets the rigorous demands of the electronics industry for both commercial and industrial applications.

With its combination of features, the 74HC154N,652 from NXP Semiconductors is an excellent choice for designers looking for a reliable and high-performing decoder/demultiplexer for their digital systems.
