Introducing the 74HC1G125GV: High-Performance Single Buffer/Gate by NXP

The 74HC1G125GV is a high-quality single non-inverting buffer/gate with a 3-state output from NXP Semiconductors, designed to meet the demands of high-speed and low-power applications. This integrated circuit (IC) is part of the 74HC (High-Speed CMOS) family, which is renowned for its robust performance and compatibility with TTL (Transistor-Transistor Logic) levels.

Key Features

• Logic Type: The device functions as a non-inverting buffer/gate with a single input and a single output, ensuring signal integrity by buffering the input signal.
• 3-State Output: The output can be set to logic high, logic low, or high impedance (off), providing versatility in bus-oriented applications.
• High Noise Immunity: The 74HC1G125GV boasts a balanced propagation delay and transition times, which gives it a high tolerance to noise, making it ideal for use in electrically noisy environments.
• Low Power Consumption: With CMOS technology, it offers low power dissipation, yet maintains a high speed, which is crucial for battery-powered and energy-efficient designs.
• Wide Operating Voltage: It operates over a wide voltage range from 2V to 6V, accommodating various logic level requirements and ensuring compatibility with a broad range of other logic devices.
• Latch-Up Performance: The device has an excellent latch-up performance, which exceeds 100mA per JESD 78, Class II, ensuring stable operation even under stressful conditions.

Applications

The 74HC1G125GV is suitable for a diverse range of applications, including but not limited to:

• Logic level shifting
• Line driving
• Bus interfacing
• Memory address isolation
• Control signal buffering
• Support for high-speed data paths

Package Information

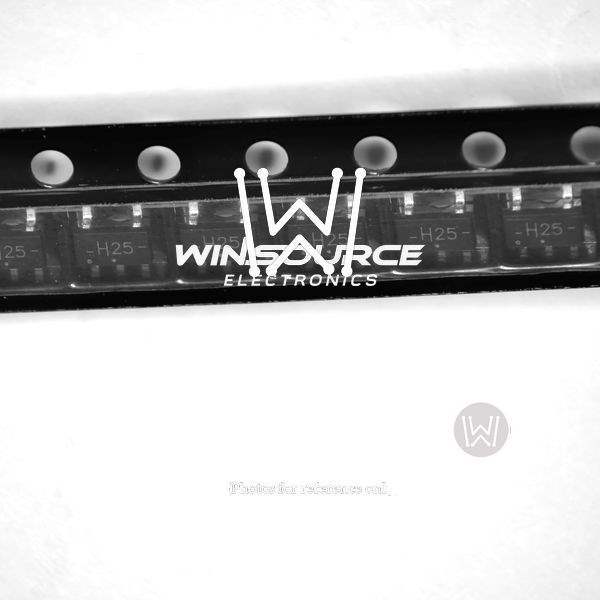

This device is available in a very small outline package (SOT753), which is also known as SC-74A or SOT353. Its compact size makes it an excellent choice for space-constrained applications while still providing the robust performance expected from NXP products.

Overall, the 74HC1G125GV from NXP is a reliable and versatile component that can be used to enhance the performance and efficiency of digital systems. It offers the perfect balance between power consumption and speed, making it an essential part of any high-performance electronic design.
