The 74HCT4515N,652 is a high-performance integrated circuit from NXP Semiconductors, renowned for its precision and durability in various electronic applications. This chip is part of the 74HCT series, which is compatible with TTL levels and known for its high noise immunity and low power consumption.

Key Features

• Logic Type: 4-to-16 line decoder/demultiplexer with input latches
• Output Capability: Standard
• ICC Category: MSI
• Power Supply: Operates on a 5V supply voltage
• Logic Family: HCT

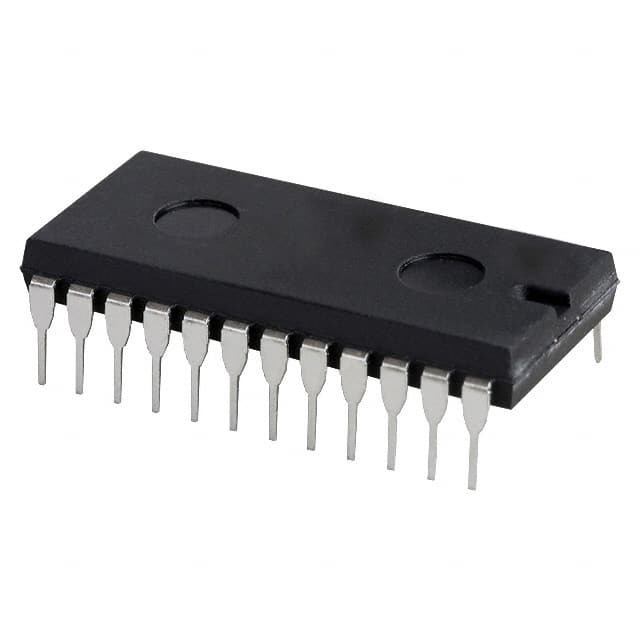

• Package: The device comes in a DIP-24 (Dual In-line Package) for easy insertion and mounting on printed circuit boards.

Functional Description

The 74HCT4515N,652 is designed for use in applications requiring a high-density decoding or demultiplexing function. It accepts a 4-bit binary weighted address on input lines A0 to A3 and, when enabled, provides a low-level output on one of the 16 output lines Y0 to Y15. The device features input latching on the address lines, ensuring stable operation even in the presence of noisy signals. The enable function is controlled by three inputs: two active-low (E1, E2) and one active-high (E3).

Applications

This versatile decoder/demultiplexer is suitable for a wide range of applications, including:

• Data routing
• Memory address decoding
• Control signal generation
• Demultiplexing for data distribution
• Function selection in microprocessor systems

Quality and Reliability

NXP's commitment to quality ensures that the 74HCT4515N,652 is manufactured to the highest standards, providing reliable performance in your electronic designs. The device is specified over a wide operating temperature range, making it suitable for industrial applications.

Environmental Compliance

The 74HCT4515N,652 is designed with environmental responsibility in mind. It complies with various international standards, ensuring that it meets the requirements for lead-free and RoHS-compliant manufacturing processes.
