Product Overview: 74LVC2G38GD,125 from NXP

The 74LVC2G38GD,125 is a high-performance, dual 2-input NAND gate with open-drain outputs, manufactured by NXP Semiconductors. This integrated circuit (IC) is part of the LVC family, which is known for its low-voltage operation and compatibility with a wide range of voltage levels. The device is designed for use in 3.3V or 2.5V systems, while maintaining 5V tolerant inputs, making it suitable for interfacing with both 3.3V and 5V logic levels.

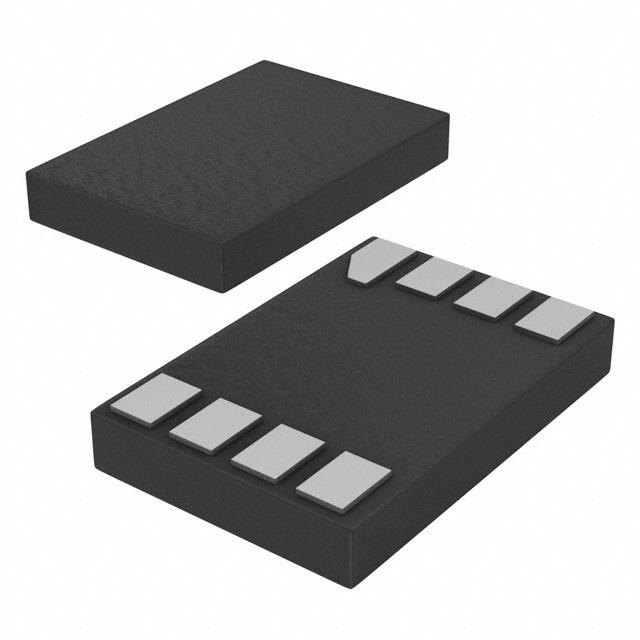

Encased in a compact 8-pin XSON8 package, the 74LVC2G38GD,125 offers a space-saving solution for modern electronic applications that demand high-density integration. The device's small footprint makes it ideal for portable and miniaturized electronic assemblies.

Key features of the 74LVC2G38GD,125 include its ability to operate from a low power supply voltage ranging from 1.65V to 5.5V, which provides designers with flexibility in various power environments. The IC also boasts a low static power consumption, with a quiescent current of only 10µA, making it an excellent choice for power-sensitive applications.

The 74LVC2G38GD,125 is characterized by its high-speed performance, with a propagation delay of just 3.7ns at a 3.3V supply voltage, facilitating fast signal processing in critical applications. Additionally, the open-drain outputs allow for wired-AND logic level translations, which can be used to interface with higher voltage levels when needed.

With its robust ESD protection, the device ensures reliability and longevity in harsh electrical environments. It is capable of handling electrostatic discharges up to 8kV (HBM), providing peace of mind for designers when integrating the IC into their systems.

Overall, the 74LVC2G38GD,125 from NXP is an optimal choice for designers seeking a reliable and versatile NAND gate logic solution. Its compatibility with various voltage levels, low power consumption, and compact size make it suitable for a broad range of applications including, but not limited to, computing, consumer electronics, and communication systems.
