Product Overview: 74LVCH162245ADGG:1 from NXP

The 74LVCH162245ADGG:1 is a high-performance, bi-directional transceiver from NXP Semiconductors, designed for use in applications that require low-voltage, high-speed data transfer and interfacing. This integrated circuit is part of the advanced 74LVCH family, which is recognized for its robustness and compatibility with mixed-voltage system environments.

Key Features

• Technology: The device is built upon CMOS technology, ensuring low power consumption and high noise immunity.
• Voltage Range: It operates at a 3.3V power supply but can interface with a 5V signal environment, offering a wide range of compatibility with various logic levels.
• Bus Hold: Equipped with bus-hold circuitry on all data inputs, the transceiver maintains the last valid input state when no new data is presented, eliminating the need for external pull-up or pull-down resistors.
• High-Speed Performance: The device supports high-speed data transfer, making it suitable for interfacing with high-speed microprocessors or memory devices.
• Direction Control: Direction control inputs (DIR) manage the data flow direction, allowing for flexible bi-directional data communication.
• Output Enable: The output enable (OE) inputs control the transceiver outputs and can disable the outputs to place them in a high-impedance state, thus allowing for multiplexed data lines.

Package and Quality

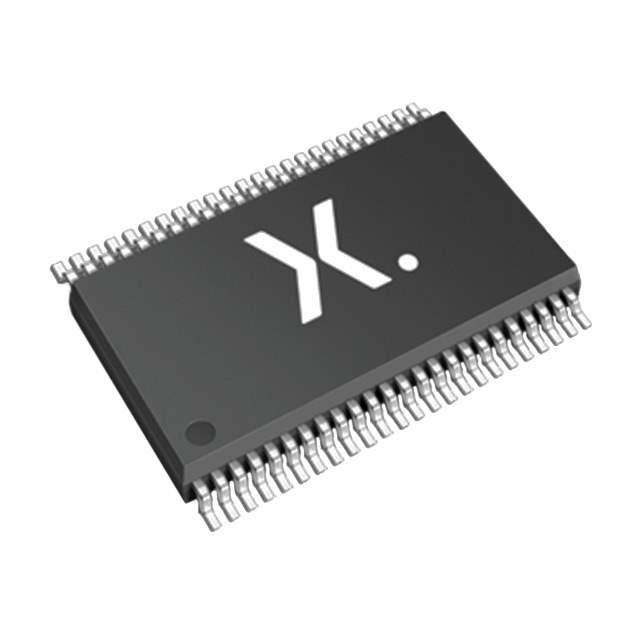

The 74LVCH162245ADGG:1 comes in a TSSOP48 (Thin Shrink Small Outline Package) with 48 pins, providing a compact footprint suitable for space-constrained applications. The package is also designed for improved thermal dissipation and reduced inductance, enhancing the overall performance of the device.

Applications

With its versatile features and high-speed capabilities, the 74LVCH162245ADGG:1 is ideal for a broad range of applications, including:

• Memory interfacing
• Microprocessor or microcontroller interfacing
• Data communication systems
• Signal bridging between different voltage domains
• Bus isolation and buffering in backplane applications

In summary, the 74LVCH162245ADGG:1 from NXP is a reliable and efficient solution for designers looking to facilitate fast and stable data exchange while maintaining compatibility across different voltage levels in their digital systems.
