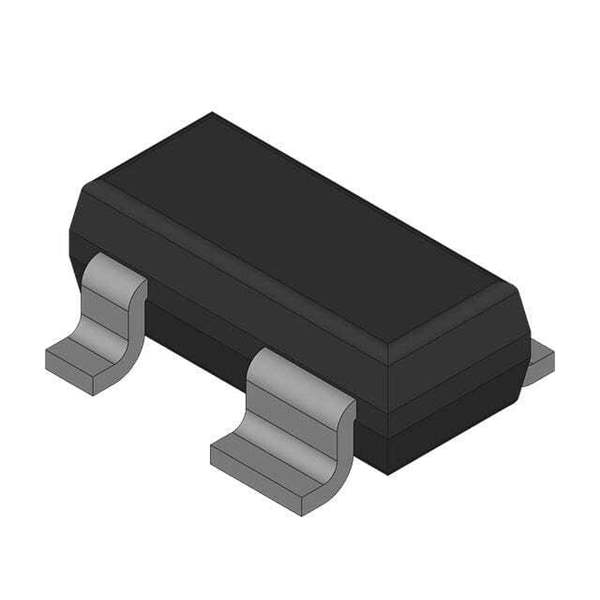

The NXP BAS56/DG/B2235 is a high-performance switching diode encapsulated in a small SOT23 surface-mounted device (SMD) package. This diode is designed to meet the rigorous demands of high-speed switching applications in modern electronic circuits. With its fast switching speed and low leakage current, the BAS56/DG/B2235 is ideal for high-frequency operations and is widely used in a variety of applications such as signal processing, digital circuits, and automated systems.

Key Features

• Fast Switching Speed: The BAS56/DG/B2235 is engineered for rapid switching, making it suitable for high-speed applications where efficiency is paramount.
• Low Leakage Current: Minimizing power loss is crucial in electronic designs, and this diode's low leakage current ensures minimal power wastage when in the off state.
• Surface-Mount Package: The compact SOT23 package allows for efficient use of PCB space and is compatible with automated assembly processes, making it a popular choice for mass-produced electronic products.
• High Breakdown Voltage: With a high reverse breakdown voltage, the BAS56/DG/B2235 can withstand significant voltage stress, providing robust performance and reliability.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, this product is manufactured without the use of lead and adheres to the Restriction of Hazardous Substances (RoHS) directive.

Applications

The versatility of the NXP BAS56/DG/B2235 makes it a go-to component for various electronic applications. It is commonly used in:

• High-speed switching circuits
• Logic level conversion
• Wave shaping and clipping circuits
• Detectors and demodulators
• General-purpose switching applications

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and the BAS56/DG/B2235 is no exception. Each diode undergoes rigorous testing to ensure it meets the highest standards of performance and reliability. Whether for consumer electronics, automotive applications, or industrial systems, the BAS56/DG/B2235 from NXP is a trusted component that engineers and designers can rely on for their critical circuit designs.
