Products specifications

Categories Uncategorized
Manufacturer NXP
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 818812-BB202LX
Ultra Librarian 3D Model Ultra Librarian BB202LX CAD Model

Description

The NXP BB202LX is a high-performance, variable capacitance diode designed specifically for use in electronic tuning applications. This versatile diode is part of NXP's acclaimed silicon tuning diode series, known for its reliability and consistent performance across a wide range of frequencies.

Key Features

  • Low Series Resistance: The BB202LX boasts a low series resistance, making it ideal for low-noise VCO (Voltage-Controlled Oscillator) applications where signal integrity is paramount.
  • High Tuning Ratio: With its high capacitance ratio, this diode provides excellent tuning capability, allowing for precise control over frequency tuning in RF circuits.
  • Low Capacitance: The diode's low capacitance value is perfect for applications requiring minimal capacitance changes, such as phase-locked loops and other sensitive RF tuning circuits.
  • Controlled Capacitance: The BB202LX offers a well-defined capacitance range, ensuring predictable and repeatable performance in tuning applications.

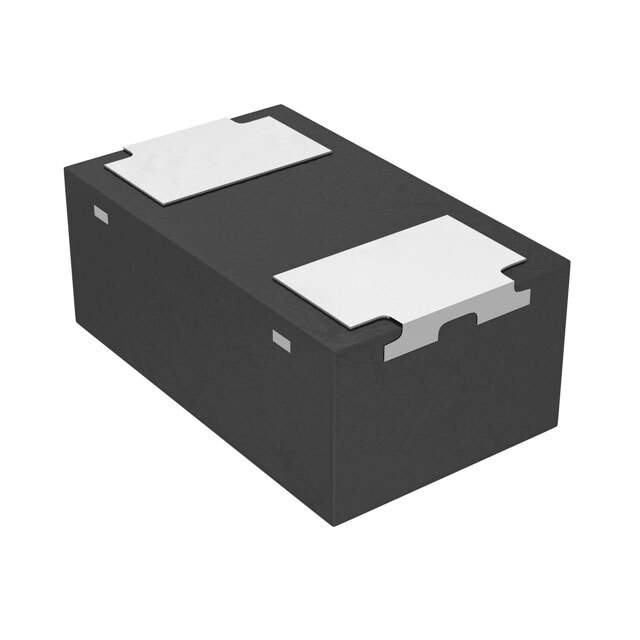

  • Surface-Mount Package: Packaged in a small, surface-mount SOD323 (SC-76), the BB202LX is designed for easy integration into modern, compact circuit designs.

Applications

The NXP BB202LX is particularly suited for applications that demand high-quality variable capacitance diodes, including:

  • Mobile and portable communications devices
  • RFID systems
  • Wireless infrastructure
  • TV and FM tuners
  • Satellite receivers

Quality and Reliability

NXP's commitment to quality is evident in the BB202LX, which is manufactured to meet the highest industry standards for performance and reliability. Customers can trust NXP's expertise in RF components to deliver a product that not only meets but exceeds their tuning requirements.

Product Summary

The NXP BB202LX variable capacitance diode is a testament to NXP's leadership in the field of RF tuning technology. With its low series resistance, high tuning ratio, and controlled capacitance, this diode is an excellent choice for designers looking to optimize their electronic tuning applications. Its small form factor and compatibility with surface-mount technology make it a convenient and effective solution for modern electronic designs.
