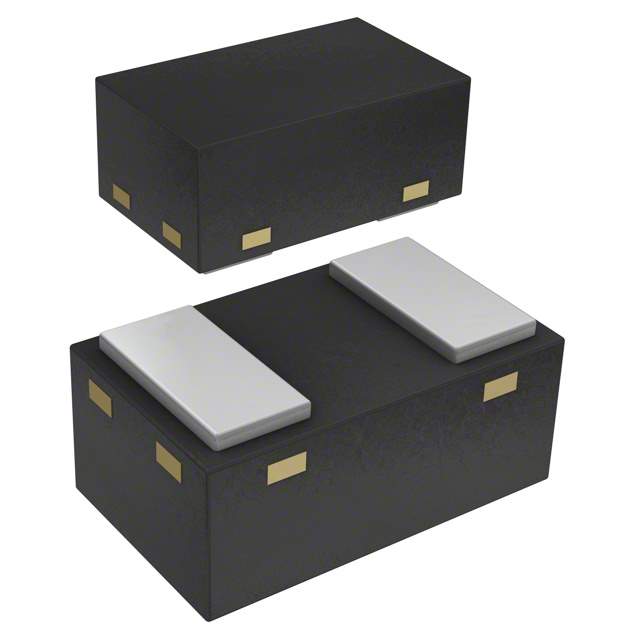

SMV1405-040LF Real Image
Same model may have multiple batches, images only for reference.

SMV1405-040LF

Part No SMV1405-040LF
Manufacturer Skyworks Solutions Inc.
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE VARACTOR 30V 20MA 0402 / Plastic Packaged Abrupt Junction Tuning Varactors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Skyworks Solutions Inc.
Packaging Reel
Capacitance at Vr, F 1.45pF at 4V, 1MHz
Capacitance Ratio 4.1
Capacitance Ratio Condition C0/C30
Voltage - Peak Reverse (Maximum) 30V
Diode Type Single
Q at Vr, F 3200 at 4V, 50MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 0402
Supplier Device Package 0402
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802094-SMV1405-040LF
Ultra Librarian 3D Model Ultra Librarian SMV1405-040LF CAD Model

Description

The Skyworks Solutions Inc. SMV1405-040LF is a high popularity electronic component with the following specifications:

  • Capacitance Ratio: 4.1
  • Packaging: Reel
  • Mounting Style: SMD
  • Diode Type: Single
  • Capacitance Ratio Condition: C0/C30
  • Supplier Device Package: 0402
  • Manufacturer Package: 0402
  • Manufacturer Pack Quantity: 3,000
  • Capacitance @ Vr, F: 1.45pF @ 4V, 1MHz
  • Q @ Vr, F: 3200 @ 4V, 50MHz
