Product Overview: NXP BCX56-16

The NXP BCX56-16 is a high-performance, medium power Bipolar Junction Transistor (BJT) that is designed to cater to a wide range of electronic applications. This NPN transistor is a versatile component known for its reliability and efficiency in circuit designs. It is housed in a SOT89 plastic package, which is not only space-efficient but also provides excellent thermal performance for better device longevity.

Key Features

• Transistor Polarity: NPN - suitable for amplification and switching applications.
• Collector-Emitter Voltage (V_CEO): 80V - provides a good margin for off-state voltage, making it robust for a variety of uses.
• Collector Current (I_C): Up to 1A - capable of handling moderate current loads, making it ideal for driving medium power circuits.
• Power Dissipation (P_D): 1.25W - ensures the transistor can dissipate a reasonable amount of heat generated during operation.
• DC Current Gain (h_FE): High hFE level, providing strong signal amplification capabilities.

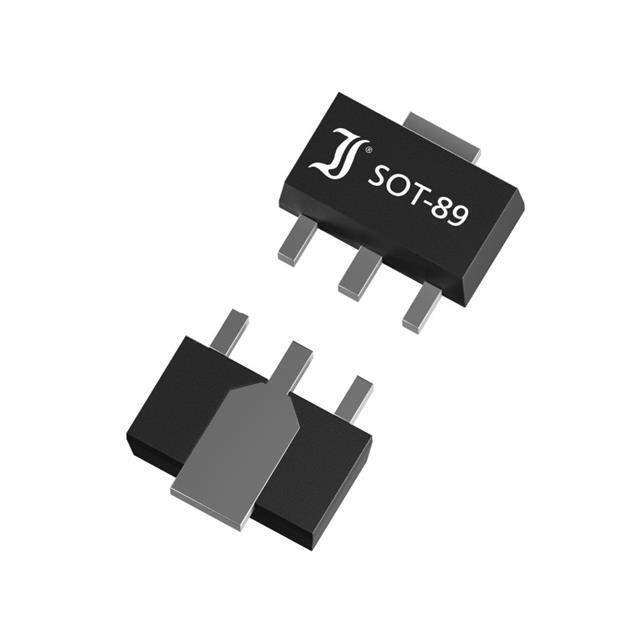

• Package: SOT89 - a compact, surface-mount package that is widely used in modern electronic designs.

Applications

The BCX56-16 is suitable for a diverse range of applications, including but not limited to:

• Linear amplification and switching.
• Power management circuits.
• Motor control drivers.
• Audio amplifiers.
• Signal processing.

With its excellent amplification characteristics and power handling capabilities, the BCX56-16 is a valuable component for designers looking to create efficient and reliable electronic products. NXP's commitment to quality ensures that this transistor meets the stringent requirements of industrial and consumer electronic devices.

In summary, the NXP BCX56-16 transistor is a robust, versatile, and reliable choice for designers and engineers who require a medium power NPN transistor that offers good performance in a compact footprint.
