Introducing the NXP BF1105R Dual-Gate MOSFET

The NXP BF1105R is a cutting-edge, silicon-based, dual-gate MOSFET that offers a unique combination of performance and efficiency for a wide range of RF applications. This versatile component is designed to operate at high frequencies, making it an ideal choice for VHF and UHF applications, including TV tuners, FM radios, and other sophisticated wireless communication systems.

Key Features:

• Low Noise Figure: With an exceptionally low noise figure, the BF1105R ensures clear signal amplification with minimal distortion, enhancing the overall signal quality in RF circuits.
• High Gain: This MOSFET provides high forward transfer admittance, which translates to a high gain at operational frequencies. This feature allows for effective signal amplification in various RF applications.
• Dual-Gate Design: The dual-gate structure of the BF1105R offers improved control and flexibility in tuning and amplification stages, enabling precise adjustment of gain and frequency response.
• Enhanced Durability: Manufactured by NXP, a leader in semiconductor solutions, the BF1105R is built to last and withstand the demands of high-performance RF applications.

Applications:

The BF1105R is suitable for a range of applications that require low-noise and high-frequency performance. These include:

• RF amplifiers in VHF and UHF bands
• Mixers and oscillators in television receivers
• FM radio tuners
• Professional communication equipment
• Satellite receivers

Technical Specifications:

The technical specifications of the BF1105R make it a robust choice for designers looking to enhance their RF circuitry:

• Frequency Range: VHF/UHF
• Low Noise Figure: Typically 1.2 dB at 800 MHz
• High Gain: Forward transfer admittance typically 24 mS

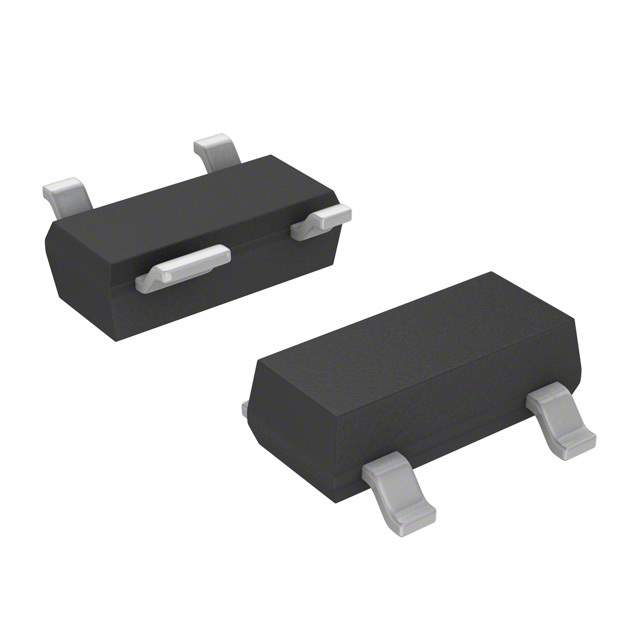

• Package: SOT143B

With the BF1105R, NXP continues to push the boundaries of RF performance, offering a MOSFET that is both powerful and reliable. Whether you're designing for consumer electronics or professional communication systems, the BF1105R is a component that can significantly enhance your product's performance.
