Product Overview: CBTL02043ABQ115

The CBTL02043ABQ115 is a high-performance integrated circuit designed and manufactured by NXP Semiconductors. This product is part of NXP's advanced range of signal switching devices, tailored to provide exceptional signal integrity and flexibility for high-speed data transmission applications.

The CBTL02043ABQ115 is a bidirectional, multipurpose switch that facilitates the routing of high-speed differential signals. With its capability to handle data rates of up to 10 Gbps, it is an ideal choice for applications that require quick and efficient data transfer, such as USB 3.0, DisplayPort, PCI Express, and SATA interfaces. This makes the CBTL02043ABQ115 a versatile component suitable for a wide array of products including computers, servers, networking equipment, and consumer electronics.

Engineered with NXP's cutting-edge technology, the CBTL02043ABQ115 offers four differential channels, which can be configured as two differential 2:1 multiplexers/demultiplexers. The device is designed to minimize crosstalk and signal attenuation, ensuring the integrity of the data as it passes through the switch. This is particularly important for maintaining the performance and reliability of high-speed signal transmission.

The CBTL02043ABQ115 also features a low on-state resistance, which reduces insertion loss and helps to maintain signal amplitude. Additionally, the device's low off-state capacitance minimizes unwanted signal reflection, further enhancing its performance in high-speed applications. The switch is controlled via a digital select input, making it easy to integrate into various system architectures.

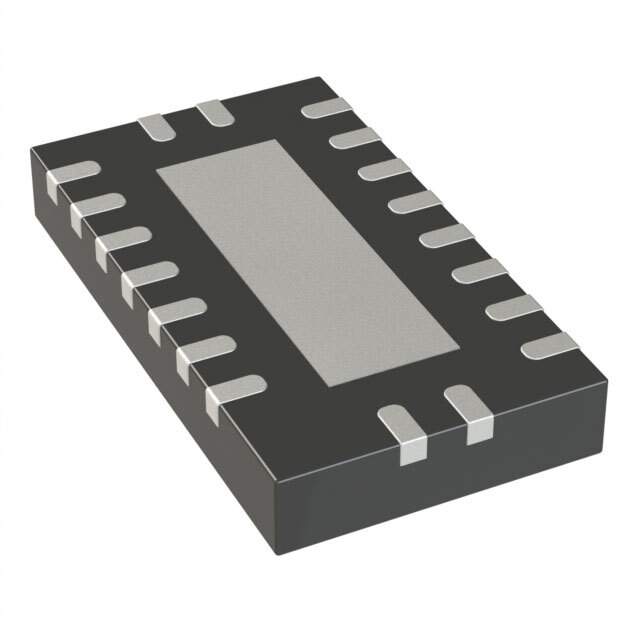

Packaged in a compact DHVQFN20 housing, the CBTL02043ABQ115 is designed for space-constrained environments without compromising on functionality or performance. Its small form factor is particularly beneficial for mobile and handheld devices, where space is at a premium.

In summary, the CBTL02043ABQ115 from NXP is a robust and reliable solution for managing high-speed differential signals. Its high data rate capability, signal integrity, and compact design make it an excellent choice for designers looking to optimize their high-speed data transmission systems.
