The NXP HEF4049BP is a high-performance, versatile integrated circuit that serves as a hex inverting buffer or level converter. Designed to accommodate a wide range of voltage levels, this chip is particularly suitable for interfacing between different logic levels, making it an essential component in digital electronics systems.

Key Features:

• Logic Type: The HEF4049BP is primarily an inverting buffer/converter, which means it inverts the input signal provided to each of its six independent channels.
• High-to-Low Level Conversion: It is capable of converting high logic levels to low logic levels, supporting a variety of applications that require voltage level shifting.
• Multiple Power Supply Options: This device can operate on a wide range of power supply voltages from 3V to 15V, making it compatible with TTL, CMOS, and other logic families.
• High Sink Current: With a high sink current capability, it can drive loads with higher current requirements, which is beneficial in driving LEDs or other output devices.

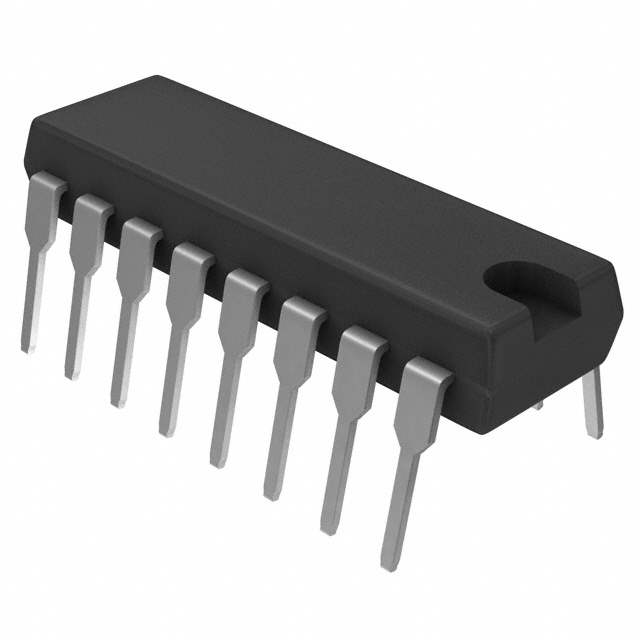

• Standard DIP Package: The HEF4049BP comes in a 16-pin Dual In-line Package (DIP), which is easy to handle and suitable for breadboard prototyping or permanent PCB installations.

Applications:

The versatility of the HEF4049BP makes it ideal for a broad range of applications, including:

• Logic level translation for interfacing different digital systems
• Driving high-current loads such as LEDs or relays
• Signal inversion for control circuits
• Waveform generation in timing circuits
• Enhancing load-driving capability in digital designs

Technical Specifications:

With its robust design and ease of use, the NXP HEF4049BP is a reliable choice for designers looking to create flexible and durable electronic systems.
