Product Overview: NXP HEF4515BP,652

The NXP HEF4515BP,652 is a high-quality, versatile integrated circuit designed to suit a wide range of digital applications. This 4-bit latch/4-to-16 line decoder is a part of the HEF4500 family, known for its robust performance and compatibility with various logic families. It features a binary to one-of-sixteen decoder with a latched binary input and is particularly useful in applications where decoding or de-multiplexing is required.

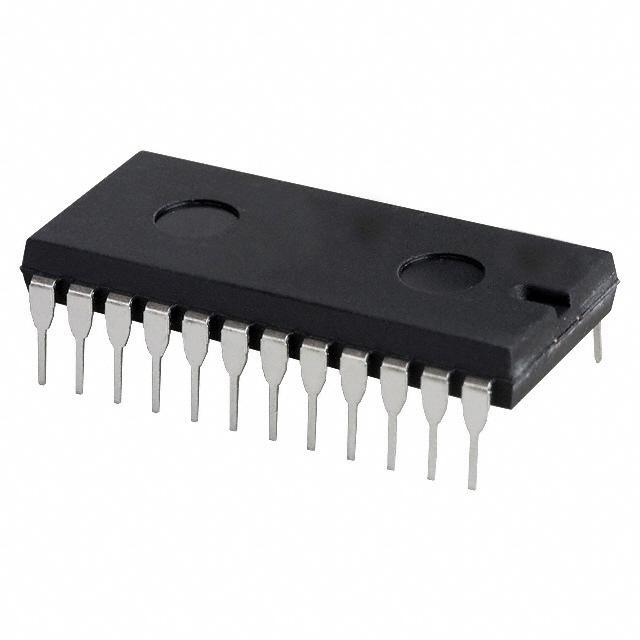

The device comes in a 24-pin DIP (Dual In-line Package), making it easy to handle and integrate into various electronic assemblies. It operates over a recommended voltage range of 3V to 15V, providing flexibility in terms of power requirements and making it suitable for interfacing with other logic levels within a system.

Key Features

• Multiple Input/Output Configurations: It includes a 4-bit latched input and 16-line output, which allows for a wide range of decoding applications.
• Voltage Range: The device can function effectively within a 3V to 15V range, accommodating various power supply scenarios.
• Output Capability: It can drive LED displays and other output devices directly, making it highly suitable for visual output applications.
• Temperature Range: The HEF4515BP,652 is designed to operate within a temperature range of -40°C to +85°C, ensuring reliability under varied environmental conditions.
• Low Power Consumption: The IC is designed for low power consumption, making it ideal for battery-operated devices or power-sensitive applications.

Applications

With its flexible decoding capabilities, the NXP HEF4515BP,652 is ideal for a vast array of applications. It can be used in digital systems for address decoding or data routing, in control systems as a part of the selection logic, or in consumer electronics for various multiplexing tasks. Its ability to directly drive indicators makes it particularly useful in display panels for computers, instrumentation, and control panels.

The HEF4515BP,652's combination of high functionality, ease of use, and compatibility with other logic families makes it a go-to choice for designers and engineers looking for a reliable decoding solution in their digital applications.
