Product Overview: IP4264CZ8-40,118

The IP4264CZ8-40,118 is a high-performance Integrated Circuit (IC) developed by NXP Semiconductors, designed to provide comprehensive signal conditioning and protection solutions for electronic devices. This versatile component is particularly well-suited for applications requiring ESD protection, filtering, and EMI/RFI suppression.

Key Features

• ESD Protection: The IP4264CZ8-40,118 offers robust electrostatic discharge protection for sensitive electronic components, ensuring device longevity and reliability. It meets the IEC61000-4-2 standard, providing a high level of protection against common electrostatic threats.
• Integrated Passive Filters: This IC features integrated passive filters that help to reduce signal noise and suppress electromagnetic interference (EMI), enhancing the performance of high-speed signal lines and maintaining signal integrity.
• Low Capacitance: The low-capacitance design of the IP4264CZ8-40,118 minimizes signal attenuation, making it ideal for protecting high-speed data lines without compromising data integrity.

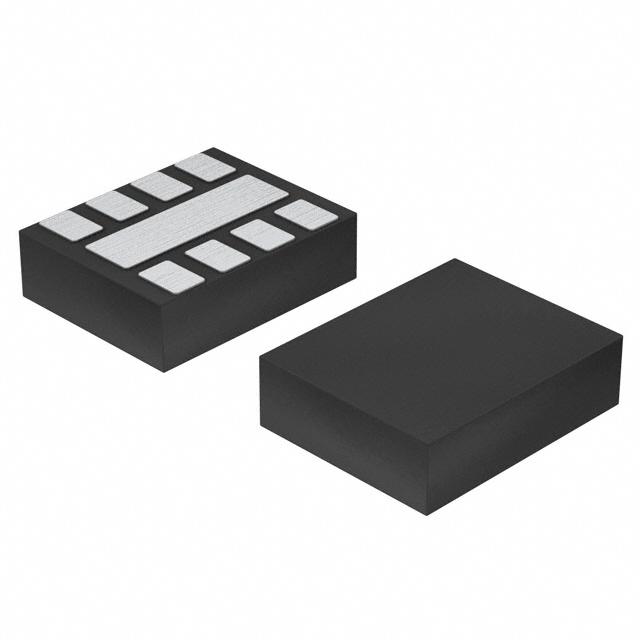

• Space-Saving Package: Housed in a compact leadless package, the IP4264CZ8-40,118 saves valuable board space, which is essential for modern, space-constrained electronic designs.

Applications

The IP4264CZ8-40,118 is suitable for a wide range of applications where signal integrity and protection are paramount. Common uses include:

• USB 2.0 power and data line protection
• Mobile and portable devices
• Set-top boxes, DVD players, and other consumer electronics
• Computing and peripheral devices
• Communication systems

Technical Specifications

Some of the technical specifications of the IP4264CZ8-40,118 include:

• Clamping Voltage: Low clamping voltage for under-voltage transient conditions
• Channel Count: Multiple channel support for broad application coverage
• Operating Temperature Range: Designed to function across a wide temperature range, ensuring reliable performance under varying environmental conditions
• RoHS Compliant: Manufactured with environmentally friendly materials, complying with the latest RoHS standards

The IP4264CZ8-40,118 from NXP Semiconductors is a testament to the company's commitment to providing advanced protection and signal conditioning solutions. With its robust feature set and compact form factor, it is an excellent choice for designers looking to enhance the safety and performance of their electronic products.
