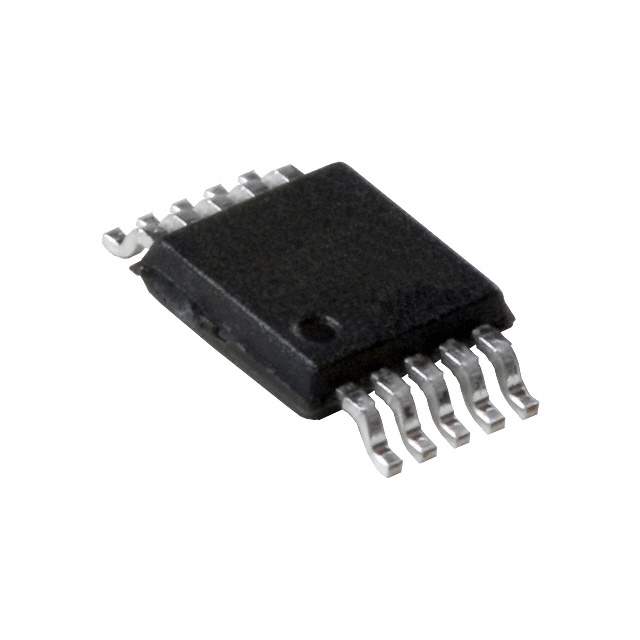

The IP4280CZ10 is a cutting-edge ESD protection device from NXP Semiconductors, designed to safeguard high-speed interfaces against electrostatic discharge (ESD) and other voltage-induced transient events. This component is particularly well-suited for applications that require robust defense mechanisms for sensitive circuitry in a compact package.

Key Features

• Integrated Protection: The IP4280CZ10 integrates multiple protection diodes in a single package, providing a comprehensive shield for up to ten lines against ESD strikes.
• Low Capacitance: With ultra-low line capacitance, this device is ideal for protecting high-speed data lines without compromising signal integrity, including USB 2.0, HDMI, and Ethernet interfaces.
• High ESD Robustness: It offers excellent ESD robustness, with the ability to withstand ESD discharges up to 8 kV contact discharge as per the IEC 61000-4-2 standard.
• Low Clamping Voltage: The device's low clamping voltage ensures that even when an ESD event occurs, the transient voltage presented to the protected circuit remains within safe limits.
• Space-saving Design: Housed in a compact DFN2510A-10 (SOT1176) leadless package, the IP4280CZ10 is designed to save valuable board space in dense electronic systems.

Applications

The IP4280CZ10 is versatile and can be used across various applications, such as:

• Mobile and Portable Devices
• Computers and Peripherals
• Consumer Electronics
• High-Speed Data Line Protection
• Audio and Video Interfaces

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the IP4280CZ10 is no exception. It is manufactured to the highest standards, ensuring both reliability and performance for the most demanding applications. By choosing the IP4280CZ10, designers can confidently protect their electronic systems from the potentially damaging effects of ESD and other transient voltages.
