The NXP LM75BD is a high-precision digital temperature sensor that offers a blend of features suitable for a wide range of applications. It is designed to measure temperature with minimal integration effort, providing an ideal solution for system temperature monitoring and control.

Key Features

• Accuracy: The LM75BD boasts an impressive temperature accuracy of ±2°C over a -55°C to +125°C range, ensuring reliable readings in various environments.
• Interface: It features a user-friendly I2C-bus interface, which supports a host of I2C-bus compatible devices, making it easy to integrate into existing systems.
• Programmable Resolution: The temperature resolution is programmable from 9 to 12 bits, allowing users to optimize the trade-off between resolution and measurement speed according to their specific needs.
• Low Power Consumption: Designed with power efficiency in mind, the LM75BD operates with a low supply current, making it suitable for battery-powered and energy-conscious applications.
• Shutdown Mode: An integrated shutdown mode helps further reduce power consumption when the sensor is not in use.

Applications

The LM75BD is versatile and can be utilized in various applications, including but not limited to:

• System thermal management
• Personal computers and servers
• Electronic test and measurement equipment
• Industrial controls
• Battery management systems

Additional Information

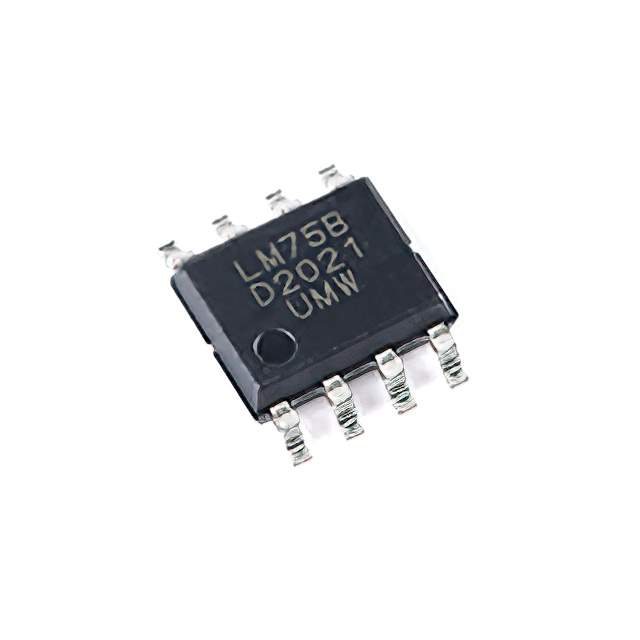

The device is encapsulated in an SO8 package, which is surface-mountable and suitable for compact PCB layouts. The LM75BD also includes a range of programmable features such as overtemperature shutdown, hysteresis settings, and an integrated temperature-to-digital converter. With these capabilities, the LM75BD from NXP stands out as a robust and precise temperature sensing solution for designers looking to add temperature monitoring and control to their electronic projects.
