Product Overview: LPC1113FHN33/202,5 by NXP Semiconductors

The LPC1113FHN33/202,5 is a cutting-edge microcontroller unit (MCU) from NXP Semiconductors, designed for embedded applications requiring low power consumption and high-performance processing. This MCU is part of the LPC1100 series, which is renowned for its efficiency, reliability, and cost-effectiveness, making it an ideal choice for a wide range of industrial, consumer, and computing applications.

Key Features

• Core: ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.
• Memory: 24 KB of on-chip flash programming memory with 8 KB of SRAM.

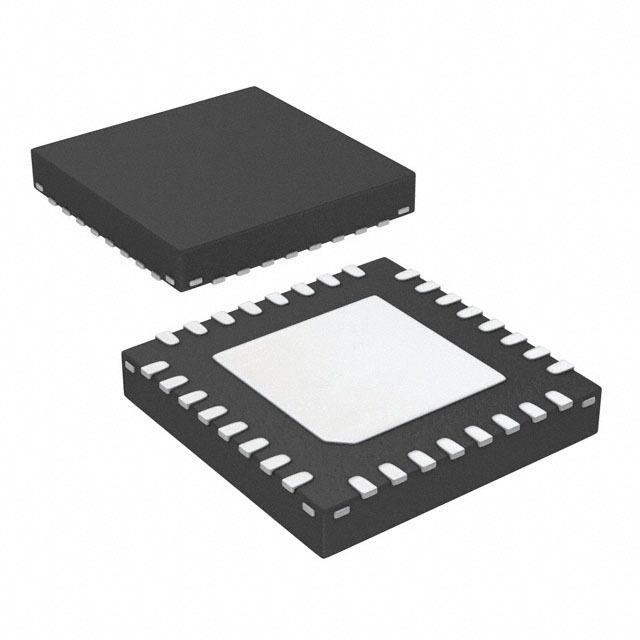

• 33-pin HVQFN package provides a compact footprint for space-constrained applications.
• Serial Wire Debug and In-System Programming (ISP) for easy development and debugging.
• Integrated oscillator with an operating range from 1 MHz to 25 MHz and a 12 MHz internal RC oscillator for versatile clocking options.
• Power Efficiency: Multiple power modes including an ultra-low power deep-sleep mode with reduced power consumption.
• GPIO: Up to 28 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors.
• Communication Interfaces: Includes I2C, SPI, and UART for versatile peripheral connectivity.
• 6-channel 10-bit ADC with a conversion rate of up to 400 kS/s for analog input.
• Temperature Range: Operating temperatures from -40°C to +85°C, suitable for harsh environments.

Applications

The LPC1113FHN33/202,5 is designed to address the needs of a multitude of applications such as:

• Industrial control systems
• Consumer electronics
• Handheld devices
• Alarm systems
• Battery management
• IoT devices and sensors

Support and Resources

NXP provides extensive support and resources to developers working with the LPC1113FHN33/202,5, including development tools, software libraries, and application notes. The MCU is supported by the LPCXpresso IDE and a variety of third-party development platforms, enabling rapid prototyping and accelerated time-to-market for new products.
