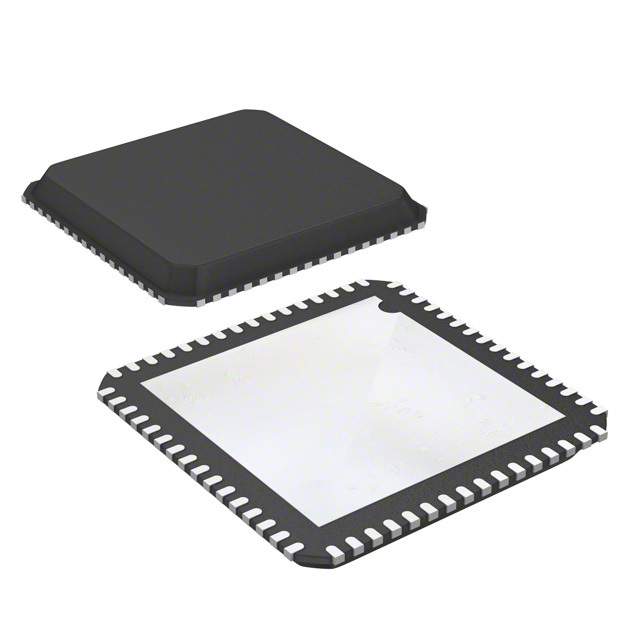

NXP LPC2138FHN64,557 Microcontroller

The LPC2138FHN64,557 is a high-performance microcontroller designed by NXP Semiconductors, featuring a 32-bit ARM7TDMI-S CPU core. This microcontroller is well-suited for embedded applications that require a combination of low power consumption, advanced interrupt handling, versatile serial communication, and robust I/O capabilities.

Key Features:

• Core: ARM7TDMI-S processor running at up to 60 MHz, providing a perfect balance between power consumption and processing capability.
• Memory: Comes equipped with 512 KB of on-chip flash memory for program storage and 32 KB of SRAM for data operations, ensuring ample space for complex applications.
• Digital Peripherals: Offers a wide range of digital peripherals, including 45 General Purpose I/O (GPIO) pins with configurable pull-up/down resistors, multiple 32-bit timers, and an advanced Vectored Interrupt Controller for efficient handling of interrupts.
• Serial Communication: Features multiple serial interfaces such as UART, I2C, SPI, and SSP, allowing for flexible communication options with other devices and peripherals.
• Analog Features: Includes a 10-bit Analog-to-Digital Converter (ADC) with multiple channels, enabling the microcontroller to interface with analog sensors and devices.
• Power Management: Supports multiple power-down modes, which significantly reduce power consumption and extend battery life in portable applications.
• Packaging: Available in a compact 64-pin LQFP package, making it suitable for space-constrained applications.
• System Control: Provides a System Control Block for power control, clock control, and system configuration, simplifying system management and optimization.
• Debugging and In-System Programming: Features In-System Programming (ISP) and In-Application Programming (IAP) support through on-chip bootloaders, as well as JTAG and Embedded Trace Macrocell (ETM) interfaces for comprehensive debugging.

The LPC2138FHN64,557 microcontroller is an ideal choice for a wide range of applications, including industrial control systems, medical devices, automotive electronics, and communication systems. Its robust feature set and flexible design options make it a go-to solution for designers looking to create sophisticated and reliable embedded systems.
