NXP LPC2294HBD144/01K Microcontroller

The NXP LPC2294HBD144/01K belongs to the robust family of LPC2000 microcontrollers that are designed for embedded applications requiring high performance, low power consumption, and a wide range of integrated features. This particular model is a powerful ARM7TDMI-S based microcontroller that is well-suited for industrial control, medical systems, automotive, and other embedded systems that demand reliability and versatility.

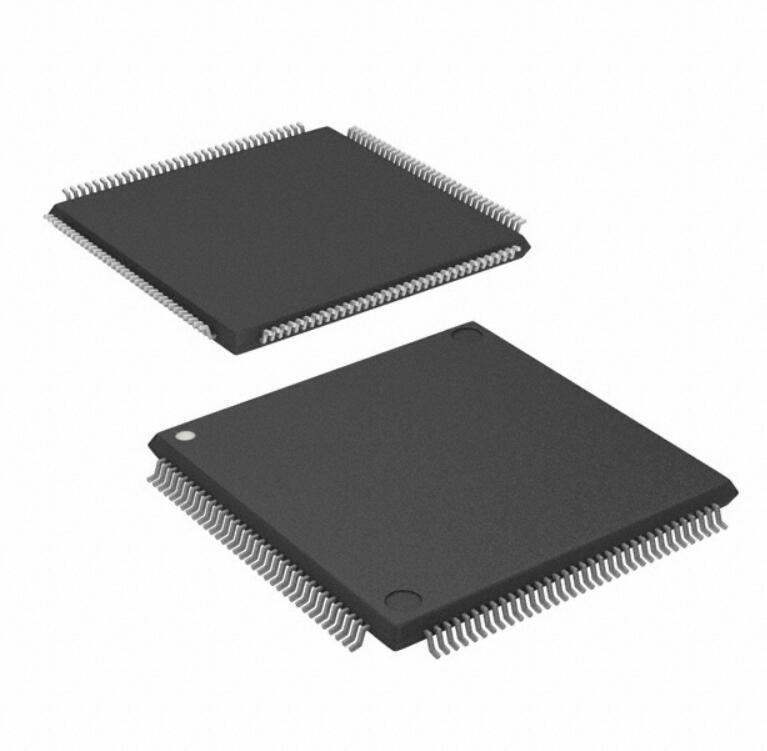

With a 144-pin LQFP (Low Profile Quad Flat Package), the LPC2294HBD144/01K offers ample I/O options for interfacing with external devices. It operates at a frequency of up to 60 MHz, providing the computational speed necessary for complex tasks. The microcontroller includes 256 KB of on-chip flash memory for program storage, complemented by 16 KB of static RAM (SRAM) for data operations, ensuring efficient execution of code and data handling.

Key features of the LPC2294HBD144/01K include:

• A 32-bit ARM7TDMI-S processor core, which provides high performance and low power consumption.
• Multiple serial communication interfaces, including four UARTs, Fast I²C-bus (400 kbit/s), SPI, and two CAN channels, facilitating versatile connectivity options.
• Up to 112 general purpose I/O (GPIO) pins for flexible interfacing with other components and peripherals.
• 10-bit A/D converters and multiple 32-bit timers, making it suitable for real-time applications and complex timing requirements.
• Two PWM units and a Real-Time Clock with optional battery backup, adding to its capability in control applications.
• An external memory interface that supports both SRAM and SDRAM, allowing for easy memory expansion.
• On-chip watchdog timer to ensure system reliability and prevent system hang-ups.
• Emulation and trace support that facilitates debugging and development.

The LPC2294HBD144/01K also supports Vectored Interrupt Controller (VIC) for prioritized interrupts, which enhances the performance of real-time operating systems (RTOS) and ensures quick response times to critical system events. Its robust feature set and expandability make it an excellent choice for designers looking to create sophisticated and long-lasting embedded systems.

Overall, the NXP LPC2294HBD144/01K is a feature-rich microcontroller that combines performance, versatility, and reliability, making it a preferred choice for engineers and developers in a wide array of embedded applications.
