NXP LPC2460FBD208 Microcontroller

The NXP LPC2460FBD208 is a high-performance microcontroller designed for embedded applications requiring a rich feature set and high levels of integration. This microcontroller is part of the LPC2400 series, which is well-known for its robust ARM7TDMI-S core, offering a perfect blend of low power consumption and high-speed processing capabilities.

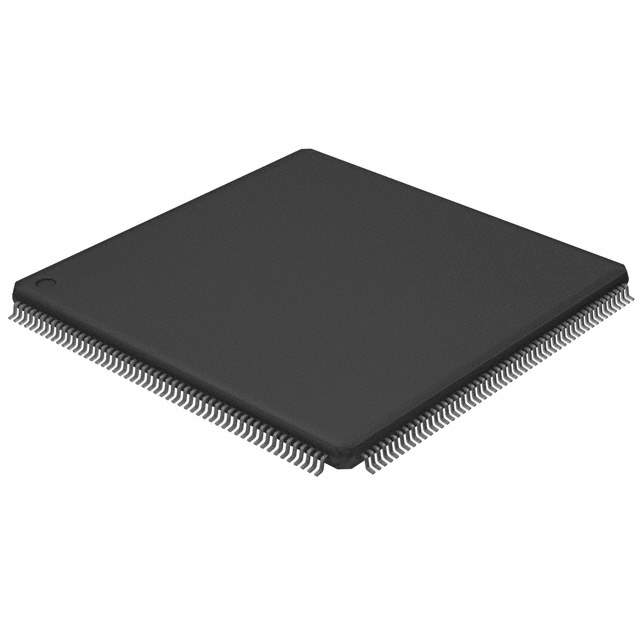

With its 208-pin LQFP (Low-profile Quad Flat Package), the LPC2460FBD208 provides ample I/O options for interfacing with other components in a system. It operates at a maximum frequency of 72 MHz, which, combined with a 16/32-bit ARM7TDMI-S core, makes it an ideal choice for applications that require efficient multitasking and real-time processing.

The device boasts an impressive 512 KB of on-chip flash memory, facilitating ample space for complex applications and software stacks. Additionally, it includes 98 KB of RAM, which is split between local SRAM for high-speed operations and general-purpose RAM for flexible storage options.

One of the standout features of the LPC2460FBD208 is its comprehensive set of peripherals. It includes multiple serial interfaces such as UARTs, I^2C-bus, SPI, SSP, and CAN channels, allowing for versatile communication options with various external devices. Furthermore, it is equipped with a 10/100 Ethernet MAC, enabling network connectivity which is essential for IoT applications and connected devices.

The microcontroller also features an integrated USB 2.0 full-speed device/host/OTG controller, adding to its connectivity capabilities. For graphical user interfaces, the LPC2460FBD208 supports an external memory controller for connecting to various types of external memory, including SRAM, SDRAM, and Flash, which is particularly useful for applications with display requirements.

Security is also a concern addressed by the LPC2460FBD208, which includes a unique ID for each device, enabling secure boot or communication functions. It also has a real-time clock with a dedicated power supply, ensuring timekeeping continues even when the main power is off.

In summary, the NXP LPC2460FBD208 is a versatile and powerful microcontroller that is well-suited for a wide range of applications, from industrial control systems to sophisticated IoT devices, thanks to its extensive memory, rich peripheral set, and robust processing core.
