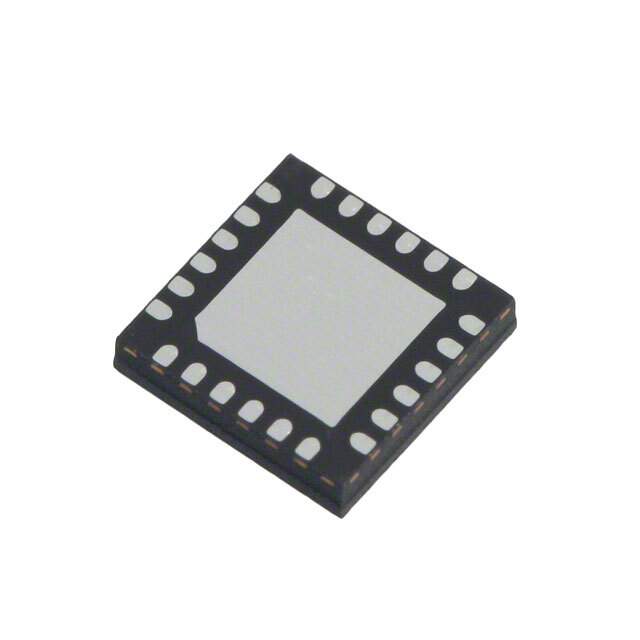

The NXP MC10XS3435DPNA is a state-of-the-art, high-efficiency, octal output, configurable switch with a range of features designed to cater to the demanding requirements of automotive and industrial applications. This advanced integrated circuit is part of NXP's portfolio of system basis chips, offering a compact solution for driving and controlling a wide variety of loads.

Key Features

• Multiple Output Channels: The device includes eight output channels, each capable of handling high current loads, making it versatile for various applications.
• High-Voltage Capability: It operates with an input voltage range from 6V to 36V, suitable for direct operation in 12V and 24V systems.
• Advanced Protection: The MC10XS3435DPNA features smart over-current, over-temperature, and short-circuit protection, ensuring the safety and reliability of the connected systems.
• SPI Interface: The Serial Peripheral Interface (SPI) allows for digital control, diagnostics, and configuration, providing ease of integration into complex systems.
• Low Standby Current: Its design focuses on energy efficiency, with a low standby current that minimizes power consumption when the device is not actively driving loads.

Applications

This versatile switch finds its applications in a diverse set of automotive environments, such as:

• Automotive lighting control
• Engine control units
• Body control modules
• Other power distribution systems

Technical Specifications

The NXP MC10XS3435DPNA is engineered to meet the stringent quality standards of the automotive industry, providing a reliable and robust solution for power switching applications. Its compact size and comprehensive feature set make it an excellent choice for designers looking to enhance system performance while maintaining high safety standards.
