The NXP MC9S12XEG128MAL is a 16-bit microcontroller that is part of the S12X series, designed for automotive and industrial applications requiring high levels of integration and performance. This microcontroller is built on NXP's HCS12X architecture, which enhances the industry-standard HCS12 platform with the XGATE co-processor, providing exceptional processing power and real-time performance.

Key Features

• Core: Enhanced HCS12X CPU with up to 40 MHz bus speed.
• Memory: 128 KB of Flash memory, 8 KB of RAM, and 4 KB of EEPROM, ensuring ample space for complex applications.
• Advanced Interrupt Handling: With the XGATE co-processor, it offers rapid and deterministic interrupt processing, crucial for real-time control.
• Digital Communication Interfaces: Multiple SCI (Serial Communication Interface), SPI (Serial Peripheral Interface), and IIC (Inter-Integrated Circuit) modules for versatile connectivity options.
• Timers: Enhanced Capture Timer, Real-Time Interrupt timer, and Pulse Width Modulation (PWM) for accurate timing and control.
• Analog-to-Digital Converter: Integrated 12-bit ADC for precise analog signal measurement.

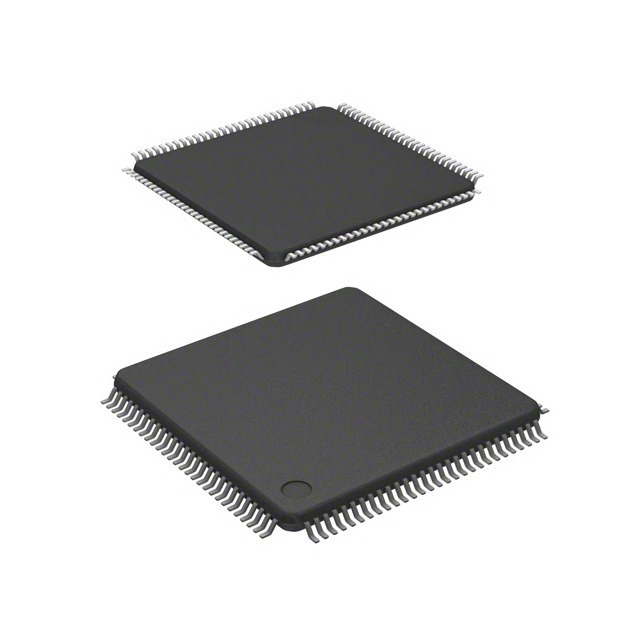

• Package: Offered in a 112-pin LQFP (Low-Profile Quad Flat Package), suitable for space-constrained applications.

Applications

The MC9S12XEG128MAL is ideal for a wide range of applications, including but not limited to automotive control systems such as engine management, transmission control, body control modules, and industrial control systems. Its robust feature set and high reliability make it particularly well-suited for harsh environments where consistent performance is critical.

Support and Tools

NXP provides comprehensive support for the MC9S12XEG128MAL with a suite of development tools, including software drivers, operating systems, and the CodeWarrior Development Studio, which offers an integrated development environment (IDE) to streamline your design process. Additionally, a range of evaluation boards and debugging tools are available to facilitate rapid prototyping and testing.
