Product Overview: MCZ33972AEWR2 by NXP Semiconductors

The MCZ33972AEWR2 is a sophisticated multiple switch detection interface (MSDI) device designed by NXP Semiconductors to meet the demanding requirements of automotive and industrial applications. This integrated circuit simplifies the detection and reporting of multiple switch states over a single wire, significantly reducing the complexity and weight of wiring harnesses in vehicles and machinery.

Key Features

• Switch Detection: The device is capable of interfacing up to 22 switch contacts, providing a comprehensive solution for systems requiring numerous inputs.
• Serial Peripheral Interface (SPI): It communicates with microcontrollers via a robust SPI interface, allowing for efficient data exchange and system integration.
• Wet/Dry Switch Selectable: Flexibility is provided with the ability to select between wetting current for switch contacts (to clean contacts and ensure reliable operation) and non-wetting for reduced power consumption.
• Robust Design: The MCZ33972AEWR2 is engineered to withstand harsh automotive environments, featuring protection against overvoltage, reverse voltage, and overcurrent events.
• Diagnostic Capabilities: Comprehensive diagnostics are included to monitor switch status, supply voltage, and chip temperature, enhancing system reliability through early fault detection.

Applications

The versatility of the MCZ33972AEWR2 makes it an ideal choice for a wide array of applications where multiple switch detections are required, such as:

• Automotive body control, including door, seat, and lighting controls
• Industrial control systems
• Building automation systems

Advanced Technology

Embedded within the MCZ33972AEWR2 is NXP's advanced SMARTMOS technology, which integrates analog, digital, and power functions into a single chip. This technology enables higher performance, smaller size, and more efficient power management compared to traditional solutions.

Package and Quality

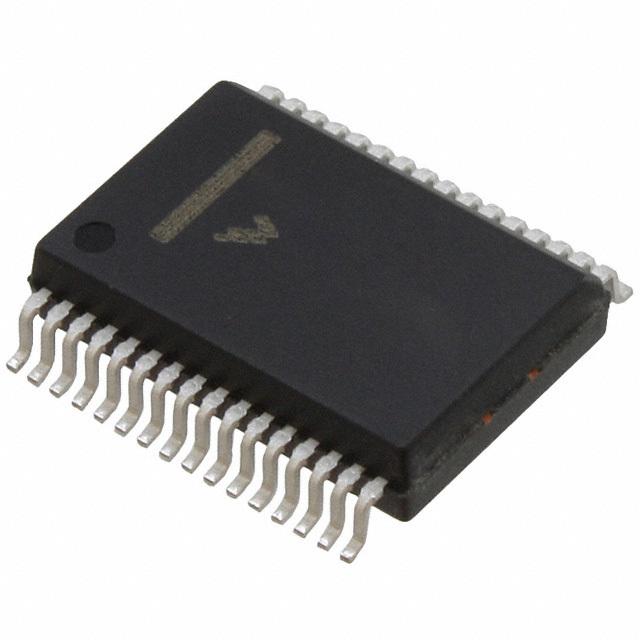

The product is offered in a compact 32-pin QFN package, ensuring a minimal footprint on the PCB. NXP also guarantees automotive-grade quality, with the device meeting the stringent AEC-Q100 standard for automotive reliability.

In conclusion, the MCZ33972AEWR2 by NXP Semiconductors represents a significant leap forward in switch sensing technology, delivering high performance, reliability, and integration for modern automotive and industrial systems.
