NXP MMRF1015GNR1 RF Power LDMOS Transistor

The NXP MMRF1015GNR1 is a state-of-the-art RF power LDMOS transistor designed for a wide range of high-frequency applications. This device is part of NXP's RF power LDMOS transistor family, known for their high performance, reliability, and efficiency in radio frequency power amplification.

With its advanced LDMOS technology, the MMRF1015GNR1 offers exceptional performance at high frequencies, making it an ideal choice for applications such as broadcast transmitters, cellular base station amplifiers, industrial, scientific, and medical (ISM) equipment, as well as aerospace and defense systems.

Key Features:

• Frequency Range: The MMRF1015GNR1 operates at a frequency range of 1.8 to 2.2 GHz, providing versatility for various RF applications.
• High Output Power: It delivers a high output power of 15 W CW, ensuring strong signal amplification for reliable communications and broadcasting.
• High Gain: The transistor features a high gain of 17 dB, which contributes to its efficient signal amplification capabilities.
• High Efficiency: With an efficiency of up to 45%, the MMRF1015GNR1 minimizes power loss and heat generation, enhancing the overall system performance and longevity.
• Ruggedness: The device is engineered to withstand a high voltage standing wave ratio (VSWR) of 10:1, making it rugged and reliable under mismatched load conditions.
• Integrated ESD Protection: It comes with integrated electrostatic discharge (ESD) protection for increased robustness and reduced risk of damage during handling and operation.

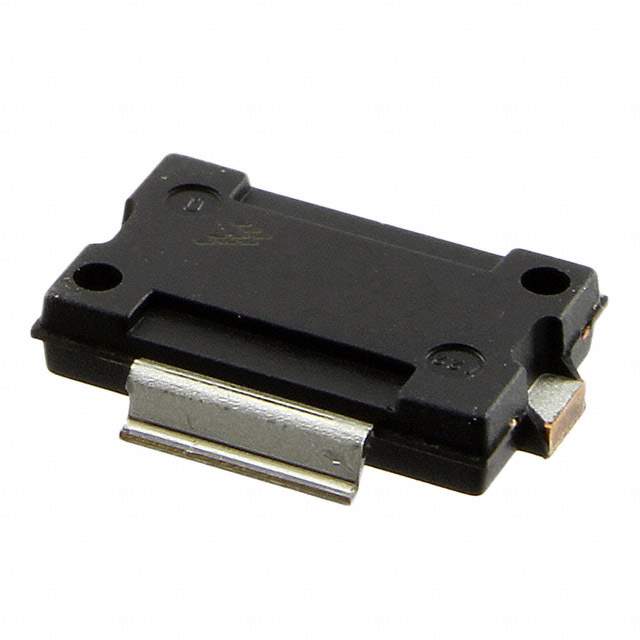

The MMRF1015GNR1 is housed in a compact over-molded plastic package, which provides excellent thermal characteristics and simplifies the assembly process. Its lead-free design and RoHS compliance make it an environmentally friendly choice for modern RF applications. With its combination of high performance, efficiency, and reliability, the NXP MMRF1015GNR1 is a premier solution for designers seeking to enhance their RF power amplification systems.
