Same model may have multiple batches, images only for reference.

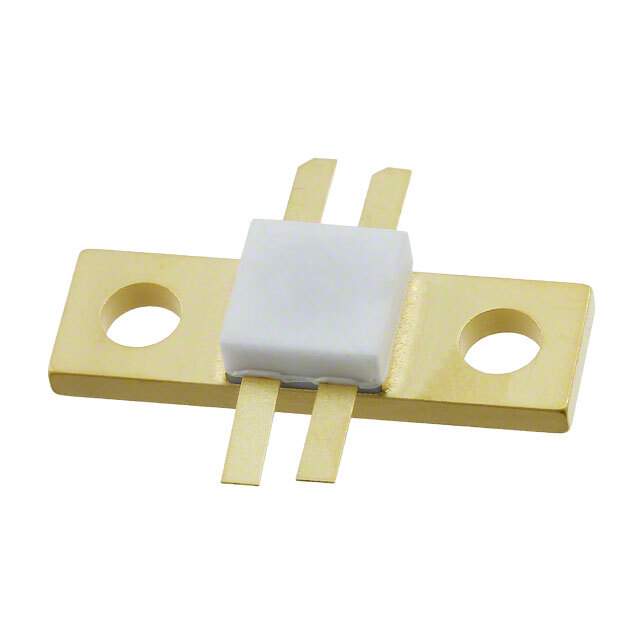

UF2820P Real Image
Same model may have multiple batches, images only for reference.

UF2820P

Part No UF2820P
Manufacturer M/A-Com Technology Solutions
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 20W 28V 100-500MHZ / RF Mosfet N-Channel 28 V 200 mA 100MHz ~ 500MHz 10dB 20W
Datasheet
UF2820P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - RF
Manufacturer MACOM Technology Solutions
Packaging Tray
Transistor Type N-Channel
Frequency 100MHz ~ 500MHz
Gain 10dB
Voltage - Test 28 V
Current Rating (Amps) 2.8A
Current - Test 200 mA
Power - Output 20W
Voltage - Rated 65 V
Base Product Number UF2820
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1465-1211
Standard Package 20
Win Source Part Number 1325011-UF2820P
Ultra Librarian 3D Model Ultra Librarian UF2820P CAD Model

Description

The UF2820P is a N-channel RF power transistor from MACOM Technology Solutions.

  • Voltage Rating: 65V
  • Frequency Range: 100MHz to 500MHz
  • Current Test: 200mA
  • Gain: 10dB
  • Power Output: 20W
  • Current Rating: 2.8A
  • Common Applications: RF amplifiers, oscillators, and transmitters.
  • ROHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
