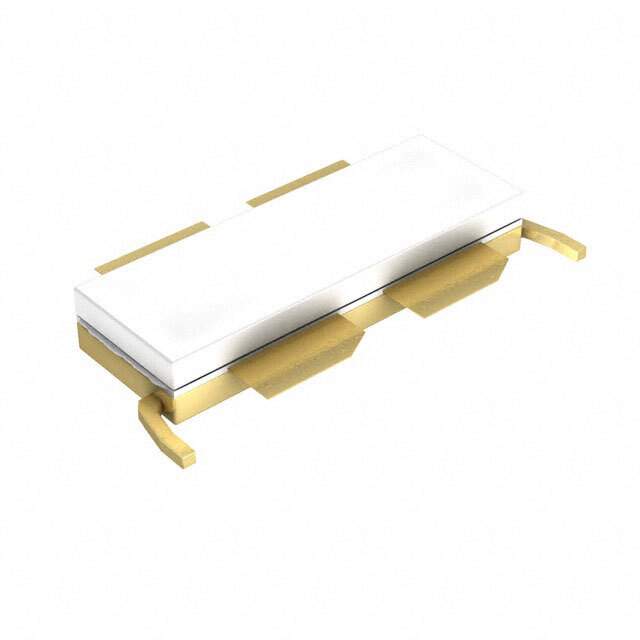

The NXP MMRF1022HSR5 is a high-performance RF power LDMOS transistor designed for use in a variety of broadcast applications, including FM radio transmitters. This device is part of NXP's advanced RF power LDMOS transistor line, which is renowned for its high efficiency, reliability, and thermal performance.

Key Features


• Frequency Range: The MMRF1022HSR5 operates effectively within the 30 MHz to 512 MHz frequency range, making it suitable for a wide array of RF applications.

• High Output Power: With a capability of delivering up to 350 W CW of continuous output power, this transistor can meet the demands of high-power systems.

• High Gain: The device offers a high gain of 23 dB, ensuring strong signal amplification for efficient broadcast transmission.

• Efficiency: The MMRF1022HSR5 boasts an excellent efficiency of 70%, minimizing power losses and ensuring cost-effective operation.

• Integrated ESD Protection: The transistor is equipped with integrated ESD protection, safeguarding it against electrostatic discharge events and enhancing its durability.

• Ruggedness: It can withstand a VSWR of 10:1 at 50 V, providing robustness against mismatched load conditions.

• Thermal Performance: The device's superior thermal performance ensures reliable operation even under stressful conditions.


Applications

The MMRF1022HSR5 is ideal for a variety of applications, such as:


• FM Broadcast Transmitters

• Industrial, Scientific, and Medical (ISM) Applications

• RF Power Amplifiers

• Commercial Aerospace and Defense Systems


Quality and Reliability

NXP's commitment to quality and reliability is evident in the MMRF1022HSR5. The device is manufactured using NXP's state-of-the-art LDMOS technology, ensuring high performance and longevity. This RF power transistor is a testament to NXP's dedication to providing innovative solutions for the RF power market.
