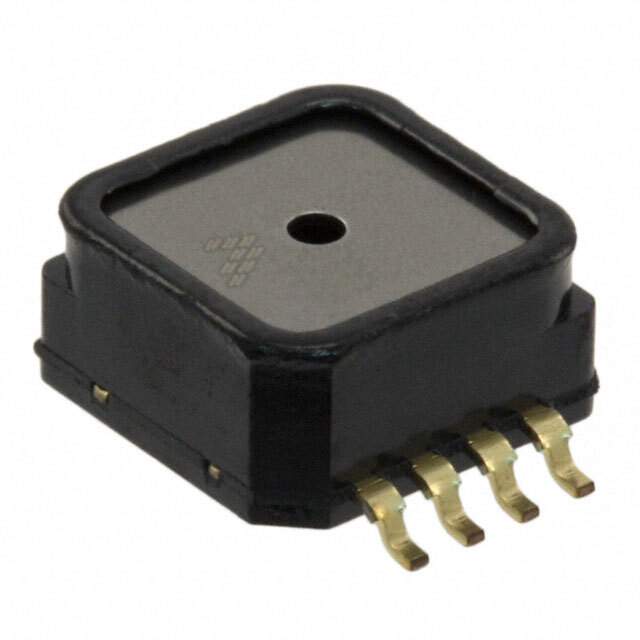

Product Overview: MPXH6101A6T1 - NXP

The MPXH6101A6T1 is a state-of-the-art pressure sensor from NXP Semiconductors, designed to deliver high-precision readings for a wide range of applications. This integrated silicon pressure sensor is tailored for a host of uses, including automotive systems, industrial controls, and consumer products.

Key Features

• Pressure Range: The sensor operates over a pressure range of 15 to 110 kPa, making it versatile for various atmospheric and non-corrosive gas pressure measurements.
• Temperature Compensated: It comes with built-in temperature compensation from -40°C to +125°C, ensuring reliable performance over a wide temperature range.
• High Sensitivity: The MPXH6101A6T1 offers a high sensitivity output that varies with applied pressure.
• Calibrated: Each unit is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity, which results in high accuracy measurements.
• Package: The sensor is provided in a small outline package (SOP) with ported and non-ported options, making it easy to integrate into various design layouts.

Applications

The versatility of the MPXH6101A6T1 allows for its use in a diverse array of applications. It is particularly well-suited for:

• Automotive engine control systems
• Altitude and airspeed measurements in avionics
• Industrial process control
• Weather station equipment
• Medical devices such as respiratory systems

Quality and Reliability

NXP's commitment to quality ensures that the MPXH6101A6T1 meets stringent reliability standards for industrial and automotive-grade components. The product is RoHS compliant and is designed to maintain performance in harsh environments.

Technical Specifications

Parameter Value Pressure Range 15 to 110 kPa Temperature Range -40°C to +125°C Sensitivity Varies with pressure Package Type SOP (Small Outline Package)
