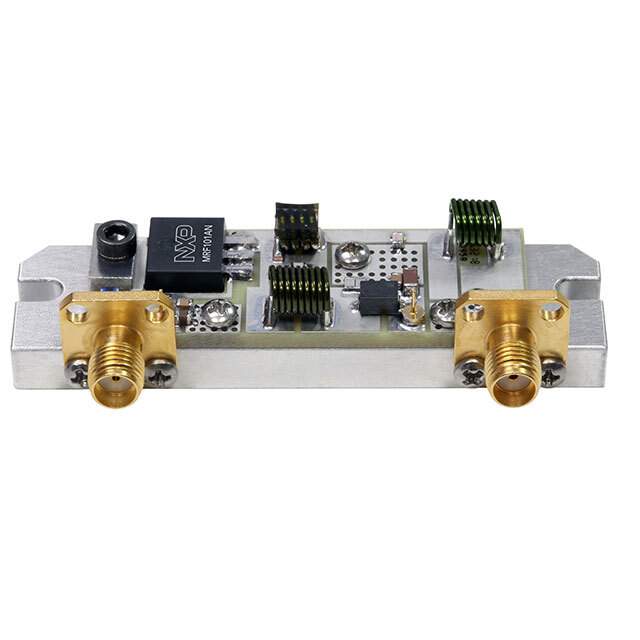

Product Overview: MRF101AN-40MHZ from NXP

The MRF101AN-40MHZ is a state-of-the-art RF power LDMOS transistor designed by NXP Semiconductors, a leader in the field of high-performance radio frequency (RF) solutions. This product is specifically tailored for applications that require high power and efficiency at a frequency of 40MHz. It is an ideal choice for a wide range of uses, including but not limited to, industrial, scientific, medical (ISM) applications, broadcast transmitters, and RF energy applications.

Key Features

• High Efficiency: The MRF101AN-40MHZ boasts an impressive high efficiency, which makes it an energy-saving solution for continuous wave (CW) and pulsed applications.
• Robust Design: Engineered for durability, the device can withstand a high voltage standing wave ratio (VSWR), making it resilient in mismatched load conditions.
• Thermal Performance: With an excellent thermal performance, the transistor stays cooler during operation, which enhances reliability and extends the product's lifespan.
• Integrated ESD Protection: The built-in electrostatic discharge (ESD) protection ensures the device is safeguarded against sudden spikes in voltage, further improving its durability.
• Wide Frequency Range: While optimized for 40MHz, the MRF101AN-40MHZ is capable of operating over a broad frequency range, providing flexibility across various RF applications.

Applications

The versatility of the MRF101AN-40MHZ allows it to be used in a variety of RF power applications. Its robustness and efficiency make it particularly suitable for:

• ISM Applications
• RF Power Amplifiers
• Particle Accelerators
• Plasma Generators
• Industrial Heating
• Medical Diagnostics and Treatment Equipment
• FM Broadcast

Technical Specifications

With a 40MHz frequency range, the MRF101AN-40MHZ offers a power gain of 20.3 dB, a drain-source voltage (Vds) of 50V, and an output power of 100W CW. Its compact and rugged design, featuring a plastic overmolded package, ensures it is both lightweight and sturdy.

For developers and engineers seeking a high-performance RF solution, the MRF101AN-40MHZ from NXP stands out as a reliable and efficient component that can significantly enhance the performance and longevity of RF systems.
