Product Overview: MRF8P29300HR6

The MRF8P29300HR6 is a state-of-the-art RF power LDMOS transistor designed and manufactured by NXP Semiconductors. This high-performance device is engineered to deliver exceptional RF power and gain for a variety of applications, including broadcast transmitters, industrial, scientific, medical (ISM) applications, and RF energy solutions.

The MRF8P29300HR6 operates at a frequency range of 2,300 to 2,900 MHz, making it ideal for use in high-frequency communication systems. It is capable of producing a remarkable output power of 300W, ensuring reliable and powerful signal amplification. With its high efficiency, this LDMOS transistor is optimized for linear applications, providing a high level of performance while minimizing power losses.

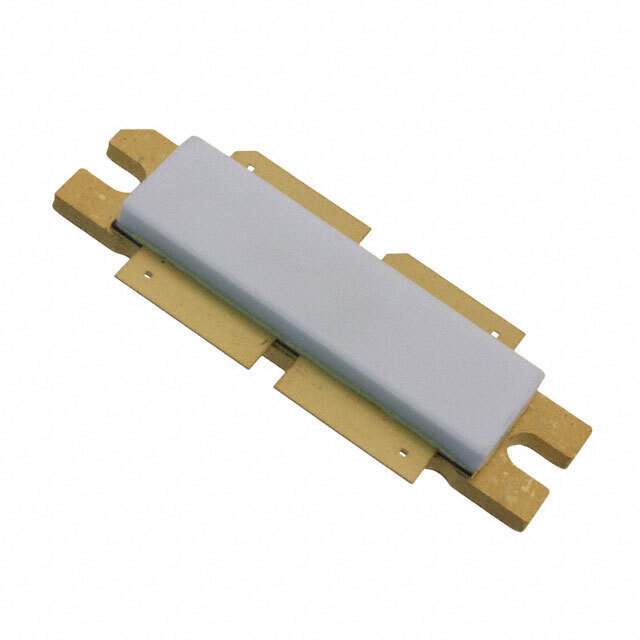

This product is housed in a robust ceramic package, which not only ensures its durability but also provides excellent thermal stability. The MRF8P29300HR6 is designed with advanced thermal management in mind, featuring a flanged package that aids in heat dissipation, thereby maintaining consistent performance even under strenuous operating conditions.

The transistor offers a high gain of 16 dB, which allows for significant signal amplification with minimal input power. Its high ruggedness is another key feature, with the ability to withstand a mismatched load VSWR of 10:1 through all phases. This makes the MRF8P29300HR6 a reliable choice for systems that may encounter unpredictable operational environments.

The integration of the MRF8P29300HR6 into RF circuits is facilitated by its excellent broadband capability, providing design flexibility and reducing the need for multiple components. Additionally, it is characterized for operation under CW conditions, ensuring stable performance for continuous wave applications.

In summary, the MRF8P29300HR6 from NXP Semiconductors is a high-power, high-efficiency RF power LDMOS transistor that offers outstanding performance for a wide range of high-frequency applications. Its robust design, thermal efficiency, and exceptional electrical characteristics make it a top choice for designers seeking reliable and powerful RF amplification solutions.
