The MRF9060LR1 is a high-performance RF power transistor from the leading semiconductor manufacturer NXP. Designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz, this product is part of NXP's renowned RF power LDMOS transistor line. The MRF9060LR1 is particularly suitable for applications such as FM broadcast, VHF TV broadcast, industrial, scientific, medical (ISM) applications, and RF energy where robustness, reliability, and high efficiency are paramount.

Key Features

• High Efficiency: The MRF9060LR1 boasts a high efficiency of 70%, minimizing power loss during operation and ensuring cost-effective performance.
• High Gain: With a power gain of 21 dB, this RF power transistor amplifies signals effectively, making it ideal for broadcast and industrial applications.
• Wide Frequency Range: Operating effectively up to 1.0 GHz, the MRF9060LR1 can be used in a variety of high-frequency applications.
• Durability: The device is designed to withstand a load mismatch ratio (VSWR) of 10:1 through all phases of operation, ensuring durability and reliability under tough conditions.
• Integrated ESD Protection: Electrostatic discharge protection is built into the device, safeguarding it against sudden voltage spikes and enhancing its lifespan.

Applications

• FM broadcasting stations
• VHF television broadcasting
• Industrial heating and welding equipment
• Medical diagnostics and treatment devices
• Scientific laboratory equipment

Technical Specifications

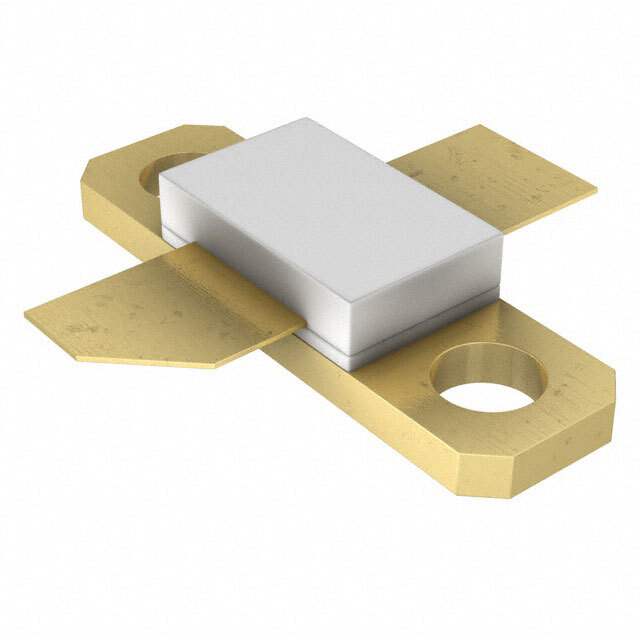

The MRF9060LR1 is encapsulated in a thermally-enhanced, over-molded plastic package, which ensures excellent thermal performance and reliability. It has a maximum power output of 60 watts CW and operates within the -65°C to +150°C temperature range, making it suitable for a wide array of environmental conditions.

Quality and Reliability

NXP is committed to delivering products that meet the highest standards of quality and reliability. The MRF9060LR1 is no exception, being manufactured in state-of-the-art facilities that comply with stringent industry certifications. Customers can trust in the consistent performance and longevity of this RF power transistor.
